AS5147-TS_EK_AB

Active

ams-OSRAM USA INC.

BOARD ADAPTER AS5147

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

BOARD ADAPTER AS5147

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Sensor Type	Supplied Contents	Interface	Voltage - Supply	Sensing Range	Qualification	Actuator Type	Detent	Encoder Type	Built in Switch	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Grade	Mounting Type	Pulses per Revolution	Termination Style
ams-OSRAM USA INC. AS5147-TS_EK_AB	AS5147	Magnetic Rotary Position	Accessories Board(s)	SPI	3.3 V 5 V	360 °
ams-OSRAM USA INC. AS5147P-HTST							AEC-Q100	External Magnet Not Included		Magnetic		3.6 V 5.5 V	3 V 4.5 V	Commutation PWM Quadrature with Index (Incremental) SPI	Automotive	Surface Mount	Programmable	SMD (SMT) Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.61

General part information

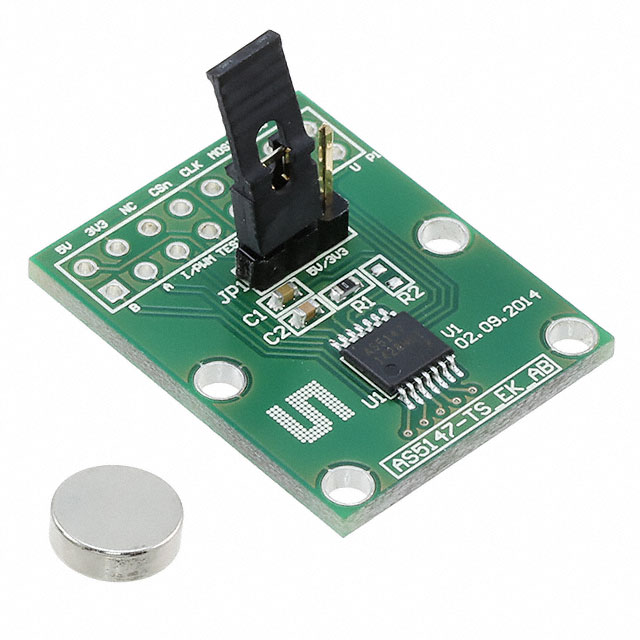

AS5147 - Magnetic, Rotary Position Sensor Evaluation Board

Technical documentation and resources

No documents available
