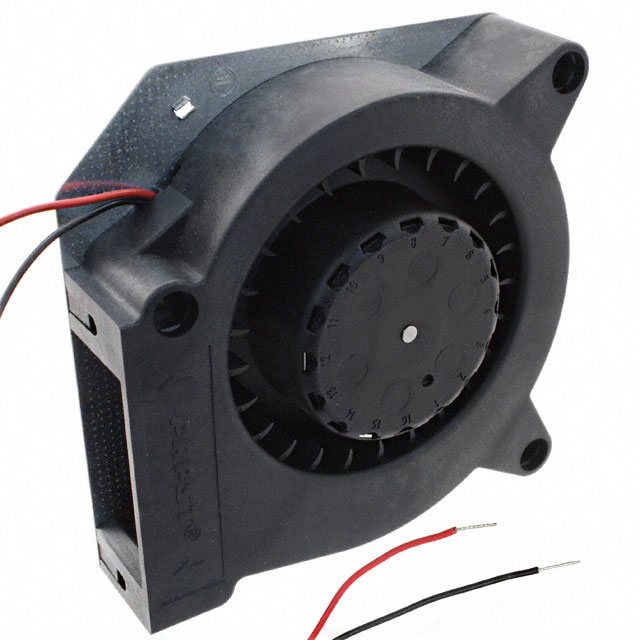

RL90-18/14N
Activeebm-papst Inc.
FAN BLOWER 121X37MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RL90-18/14N
Activeebm-papst Inc.
FAN BLOWER 121X37MM 24VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RL90-18/14N |
|---|---|
| Air Flow | 0.658 mł/min |
| Air Flow | 23.5 CFM |
| Bearing Type | Ball |
| Fan Type | Blower |
| Lifetime @ Temp. | 62500 Hrs |
| Material - Blade | Plastic, Fiberglass Reinforced |
| Material - Frame | Glass Filled, Plastic |
| Noise | 58 dB(A) |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -30 ░C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 5 W |
| RPM | 2500 RPM |
| Size / Dimension | Square/Rounded |
| Size / Dimension [x] | 121 mm |
| Size / Dimension [y] | 121 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 420.03 g |
| Weight | 0.926 lb |
| Width [y] | 37 mm |
RL90 Series
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Lifetime @ Temp. | Weight | Weight | Air Flow | Air Flow | Material - Blade | Material - Frame | Bearing Type | Voltage - Rated | Power (Watts) | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Fan Type | Voltage Range [Min] | Voltage Range [Max] | Width [y] | RPM | Operating Temperature [Max] | Size / Dimension [z] | Operating Temperature [Min] [custom] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Operating Temperature [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | 121 mm | 121 mm | Square/Rounded | 62500 Hrs | 420.03 g | 0.926 lb | 0.658 mł/min | 23.5 CFM | Plastic Fiberglass Reinforced | Glass Filled Plastic | Ball | 24 VDC | 5 W | 58 dB(A) | -30 ░C | 75 ░C | 75 °C | -30 °C | 2 Wire Leads | Blower | 12 VDC | 28 VDC | 37 mm | 2500 RPM | ||||||
ebm-papst Inc. | 121 mm | Square | 40 °C 37500 Hrs | 680.4 g | 1.5 lb | 0.692 mł/min | 24.7 CFM | Plastic Fiberglass Reinforced | Glass Filled Plastic | Ball | 115 VAC | 19.5 W | 60 dB(A) | -30 ░C | 85 °C | -30 °C | 2 Wire Leads | Blower Flatpak | 37 mm | 2550 RPM | 85 °C | 121 mm | ||||||||
ebm-papst Inc. | 121 mm | Square | 40 °C 37500 Hrs | 680.4 g | 1.5 lb | 0.658 mł/min | 23.5 CFM | Plastic Fiberglass Reinforced | Glass Filled Plastic | Ball | 230 VAC | 20 W | 60 dB(A) | 2 Wire Leads | Blower Flatpak | 37 mm | 2450 RPM | 121 mm | -30 °C | -22 °F | 70 °C | 158 °F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 100.21 | |
| 10 | $ 81.11 | |||
| 25 | $ 74.94 | |||
| 50 | $ 76.28 | |||
| 100 | $ 74.53 | |||
Description
General part information
RL90 Series
Fan Blower 24VDC Square/Rounded - 121mm L x 121mm H Ball 23.5 CFM (0.658m³/min) 2 Wire Leads
