NHD-0116DZ-FL-GBW

Active

Newhaven Display Intl

LCD MOD 16DIG 16X1 TRANS YLW/GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

NHD-0116DZ-FL-GBW

Active

Newhaven Display Intl

LCD MOD 16DIG 16X1 TRANS YLW/GRN

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0116DZ-FL-GBW

Background Color	Green
Character Format	5 x 7 Dots w/Cursor
Character Size [y]	4.84 mm
Character Size [z]	9.66 mm
Controller Type	SPLC780D, ST7066U
Display Format [x]	16
Display Format [y]	1
Display Mode	Transflective
Display Type	STN - Super-Twisted Nematic
Dot Size [x]	0.92 mm
Dot Size [y]	1.1 mm
Interface	Parallel
Number of Characters	16
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	122 mm
Outline L x W x H [y]	33 mm
Outline L x W x H [z]	14 mm
Text Color	Blue
Viewing Area [x]	99 mm
Viewing Area [y]	13 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.7 V

NHD-0116 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters	Interface	Display Mode	Viewing Area [x]	Viewing Area [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Controller Type	Operating Temperature [Min]	Operating Temperature [Max]	Dot Size [y]	Dot Size [x]	Display Type	Text Color	Character Size [z]	Character Size [y]	Background Color	Display Format [x]	Display Format [y]	Character Format [y]	Character Format [x]	Dot Size [custom]	Dot Size [custom]	Backlight	Character Format	Voltage - Supply
Newhaven Display Intl NHD-0116AZ-FL-YBW	5.5 V	4.7 V	16	Parallel	Transflective	64 mm	13.8 mm	36 mm	13.5 mm	80 mm	SPLC780D ST7066U	-20 C	70 °C	0.75 mm	0.55 mm	STN - Super-Twisted Nematic	Blue	6.56 mm	3.07 mm	Green	16	1	8 Dots	5 Dots
Newhaven Display Intl NHD-0116AZ-FL-GBW	5.5 V	4.7 V	16	Parallel 8-Bit	Transflective	64 mm	13.8 mm	36 mm	13 mm	80 mm	SPLC780D ST7066U	-20 C	70 °C	0.75 mm	0.55 mm	STN - Super-Twisted Nematic	Blue	6.56 mm	3.07 mm	Green	16	1	8 Dots	5 Dots
Newhaven Display Intl NHD-0116GZ-FSR-FBW	5.5 V	4.7 V	16	Parallel	Transflective	120 mm	23 mm	40 mm	13 mm	151 mm	SPLC780D ST7066U	-20 C	70 °C			FSTN - Film Super-Twisted Nematic	Black	14.54 mm	6 mm	Red	16	1	8 Dots	5 Dots	1.15 mm	1.77 mm	LED - Red
Newhaven Display Intl NHD-0116GZ-FSW-GBW	5.5 V	4.7 V	16	Parallel	Transflective	120 mm	23 mm	40 mm	13 mm	151 mm	SPLC780D ST7066U	-20 C	70 °C			STN - Super-Twisted Nematic	Blue	14.54 mm	6 mm	Gray	16	1	8 Dots	5 Dots	1.15 mm	1.77 mm	LED - White
Newhaven Display Intl NHD-0116DZ-FL-GBW	5.5 V	4.7 V	16	Parallel	Transflective	99 mm	13 mm	33 mm	14 mm	122 mm	SPLC780D ST7066U	-20 C	70 °C	1.1 mm	0.92 mm	STN - Super-Twisted Nematic	Blue	9.66 mm	4.84 mm	Green	16	1						5 x 7 Dots w/Cursor
Newhaven Display Intl NHD-0116GZ-NSW-BBW	5.5 V	4.7 V	16	Parallel	Transmissive	120 mm	23 mm	40 mm	13 mm	151 mm	SPLC780D ST7066U	-20 C	70 °C			STN - Super-Twisted Nematic	White	14.54 mm	6 mm	Blue	16	1	8 Dots	5 Dots	1.15 mm	1.77 mm	LED - White
Newhaven Display Intl NHD-0116GZ-FSPG-FBW	5.5 V	4.7 V	16	Parallel	Transflective	120 mm	23 mm	40 mm	13 mm	151 mm		-20 C	70 °C			FSTN - Film Super-Twisted Nematic	Black	14.54 mm	6 mm	Green	16	1	8 Dots	5 Dots	1.15 mm	1.77 mm	LED - Green
Newhaven Display Intl NHD-0116DZ-FL-YBW-33V			16	Parallel	Transflective	99 mm	13 mm	33 mm	14 mm	122 mm	SPLC780D ST7066U	-20 C	70 °C	1.1 mm	0.92 mm	STN - Super-Twisted Nematic	Blue	9.66 mm	4.84 mm	Green	16	1						5 x 7 Dots w/Cursor	3.3 V
Newhaven Display Intl NHD-0116GZ-FSB-FBW	5.5 V	4.7 V	16	Parallel	Transflective	120 mm	23 mm	40 mm	13 mm	151 mm	SPLC780D ST7066U	-20 C	70 °C			FSTN - Film Super-Twisted Nematic	Black	14.54 mm	6 mm	Blue	16	1	8 Dots	5 Dots	1.15 mm	1.77 mm	LED - Blue
Newhaven Display Intl NHD-0116GZ-FL-GBW	5.5 V	4.7 V	16	Parallel	Transflective	120 mm	23 mm	40 mm	13 mm	151 mm	SPLC780D ST7066U	-20 C	70 °C			STN - Super-Twisted Nematic	Blue	14.54 mm	6 mm	Green	16	1	8 Dots	5 Dots	1.15 mm	1.77 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 12.57

Description

General part information

NHD-0116 Series

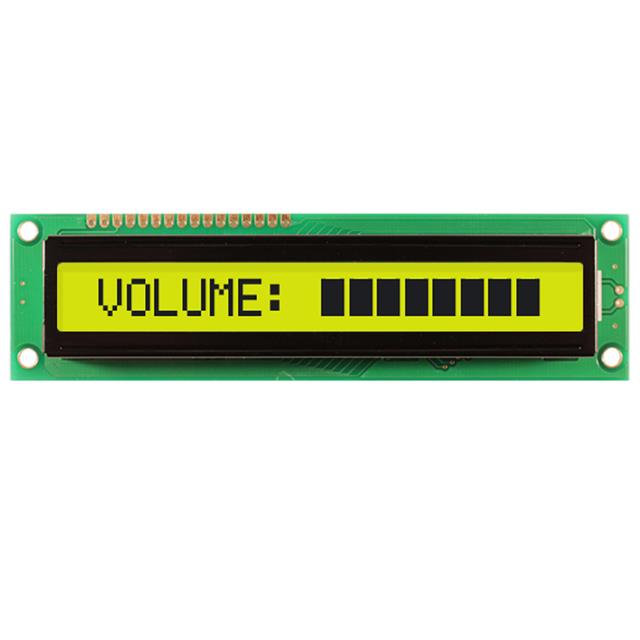

Character Display Module Transflective 5 x 7 Dots w/Cursor STN - Super-Twisted Nematic LED - Yellow/Green Parallel 122.00mm x 33.00mm x 14.00mm
