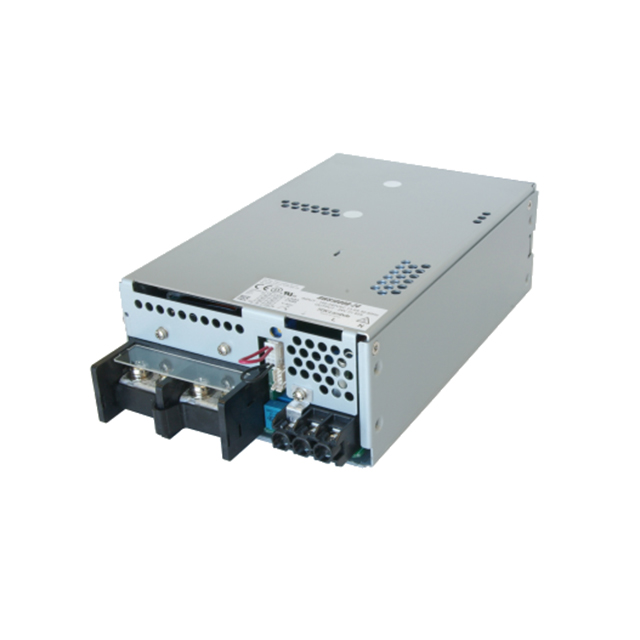

RWS1000B-15/FO

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.005 KW, 15 V, 67 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

RWS1000B-15/FO

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.005 KW, 15 V, 67 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RWS1000B-15/FO

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	67 A
Efficiency	85 %
Features	Adjustable Output, Remote Sense, Load Sharing, DC Input Capable, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1005 W
Size / Dimension [x]	7.8 in
Size / Dimension [x]	198.1 mm
Size / Dimension [y]	5 in
Size / Dimension [y]	127 mm
Size / Dimension [z]	63 mm
Size / Dimension [z]	2.48 in
Type	Enclosed
Voltage - Input [Max]	340 VDC, 265 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

RWS1000 Series

Part	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Current - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Power (Watts)	Efficiency	Approval Agency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Current - Output 1 [custom]
TDK-LAMBDA RWS1000B-24/CO2	24 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	42 A	Conformal Coated Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	88 %	CE	Adjustable Output DC Input Capable Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)
TDK-LAMBDA RWS1000B-12/ME	12 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	84 A	Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	85 %	CE	Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	Medical
TDK-LAMBDA RWS1000B-12/FO	12 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	84 A	Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	85 %	CE	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)
TDK-LAMBDA RWS1000B-15/FO	15 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	67 A	Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1005 W	85 %	CE	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)
TDK-LAMBDA RWS1000B-48/ME	48 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	21 A	Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	88 %	CE	Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	Medical
TDK-LAMBDA RWS1000B-36/RFO	36 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1		Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	88 %	CE	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)	28 A
TDK-LAMBDA RWS1000B-24/S	24 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	42 A	Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	88 %	CE	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)
TDK-LAMBDA RWS1000B-36/CO2	36 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1		Conformal Coated Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	88 %	CE	Adjustable Output DC Input Capable Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)	28 A
TDK-LAMBDA RWS1000B-15/R	15 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1	67 A	Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1005 W	85 %	CE	Adjustable Output DC Input Capable Remote On/Off Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)
TDK-LAMBDA RWS1000B-36/FO	36 V	63 mm	7.8 in	2.48 in	5 in	198.1 mm	127 mm	1		Enclosed	85 VAC 120 VDC	265 VAC 340 VDC	4000 V	1.008 kW	88 %	CE	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	60 °C	-20 °C	Chassis Mount	ITE (Commercial)	28 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 430.67
Newark	Each	1	$ 430.67
		10	$ 408.06
		25	$ 384.26
		50	$ 350.96

Description

General part information

RWS1000 Series

The RWS1000B15/FO from TDK-Lambda is a RWS1000-B series single output general purpose power supply. Approved by UL60950-1, CSA60950, EN60950-1 safety standards.
