1EZ15D5-TP
ActiveMicro Commercial Components
ZENER DIODE, 15V V(Z), 5%, 1W, SILICON, UNIDIRECTIONAL, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Deep-Dive with AI
Search across all available documentation for this part.
1EZ15D5-TP
ActiveMicro Commercial Components
ZENER DIODE, 15V V(Z), 5%, 1W, SILICON, UNIDIRECTIONAL, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1EZ15D5-TP |
|---|---|
| Current - Reverse Leakage @ Vr | 5 µA |
| Impedance (Max) (Zzt) [Max] | 14 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

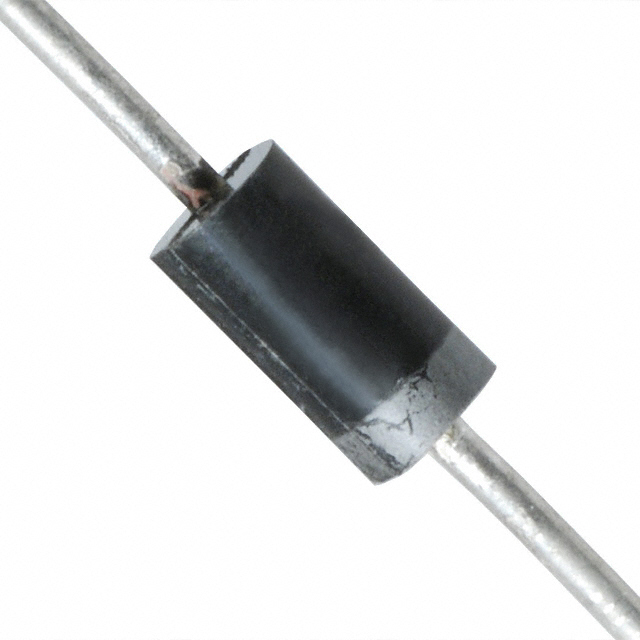

| Package / Case | DO-204AL, DO-41, Axial |
| Power - Max [Max] | 350 mW |
| Supplier Device Package | DO-41 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 0.08 | |
Description
General part information
1EZ15 Series
Zener Diode 15 V 350 mW ±5% Through Hole DO-41
