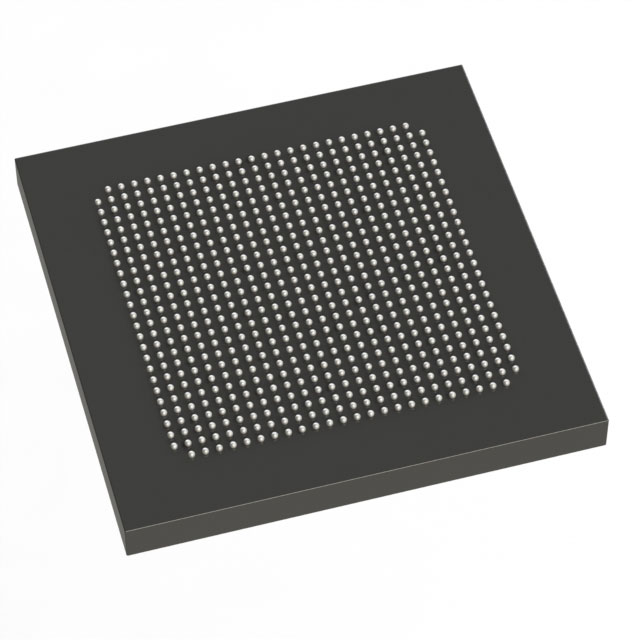

5AGZME1E2H29I3LN

Obsolete

Altera

IC FPGA 342 I/O 780HBGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 342 I/O 780HBGA

Technical Specifications

Parameters and characteristics for this part

Specification	5AGZME1E2H29I3LN

Mounting Type	Surface Mount
Number of I/O	342
Number of LABs/CLBs	10377
Number of Logic Elements/Cells	220000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	FCBGA, 780-BBGA
Supplier Device Package	780-HBGA (33x33)
Total RAM Bits	15282176 bits
Voltage - Supply [Max]	0.88 V
Voltage - Supply [Min]	0.82 V

Part	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Voltage - Supply [Max]	Voltage - Supply [Min]	Total RAM Bits	Package / Case	Mounting Type	Number of LABs/CLBs	Supplier Device Package
Altera 5AGZME1H3F35C4N	414	0 °C	85 °C	220000	0.88 V	0.82 V	15282176 bits	1152-BBGA FCBGA	Surface Mount	10377	1152-FBGA (35x35)
Altera 5AGZME1H3F35I4N	414	-40 C	100 °C	220000	0.88 V	0.82 V	15282176 bits	1152-BBGA FCBGA	Surface Mount	10377	1152-FBGA (35x35)
Altera 5AGZME1E2H29I3LN	342	-40 C	100 °C	220000	0.88 V	0.82 V	15282176 bits	780-BBGA FCBGA	Surface Mount	10377	780-HBGA (33x33)
Altera 5AGZME1E2H29C3N	342	0 °C	85 °C	220000	0.88 V	0.82 V	15282176 bits	780-BBGA FCBGA	Surface Mount	10377	780-HBGA (33x33)
Altera 5AGZME1E3H29C4N	342	0 °C	85 °C	220000	0.88 V	0.82 V	15282176 bits	780-BBGA FCBGA	Surface Mount	10377	780-HBGA (33x33)
Altera 5AGZME1H2F35I3LN	414	-40 C	100 °C	220000	0.88 V	0.82 V	15282176 bits	1152-BBGA FCBGA	Surface Mount	10377	1152-FBGA (35x35)
Altera 5AGZME1H2F35C3N	414	0 °C	85 °C	220000	0.88 V	0.82 V	15282176 bits	1152-BBGA FCBGA	Surface Mount	10377	1152-FBGA (35x35)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Arria V GZ Field Programmable Gate Array (FPGA) IC 342 15282176 220000 780-BBGA, FCBGA
