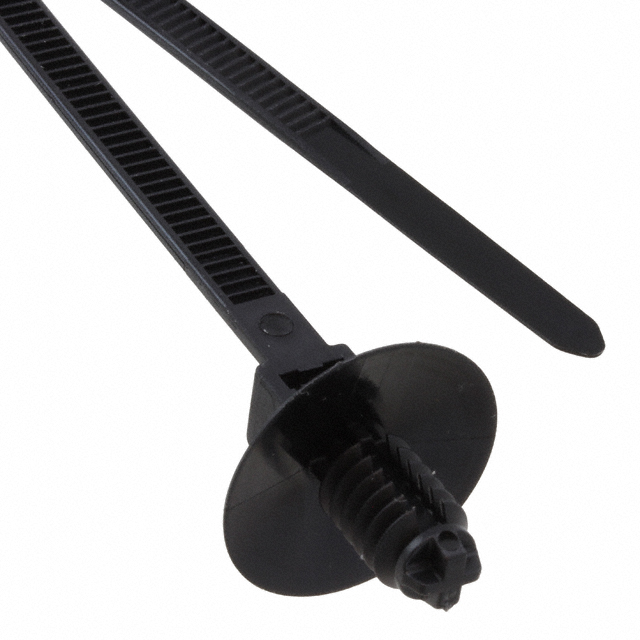

T50SDP6.HB6P
ActiveHELLERMANNTYTON
CBL TIE LOCKING BLACK 45LBS 6.7"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T50SDP6.HB6P
ActiveHELLERMANNTYTON
CBL TIE LOCKING BLACK 45LBS 6.7"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T50SDP6.HB6P |
|---|---|
| Bundle Diameter | 31 mm |
| Bundle Diameter | 1.22 in |
| Color | Black |
| Features | Heat Stabilized |
| Length - Actual | 0.558 ' |
| Length - Actual | 6.7 " |
| Length - Actual | 170.08 mm |
| Length - Approximate | 6.75 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Push Mount, Domed Fir Tree |
| Tensile Strength | 20.41 kg |
| Tensile Strength | 45 lbs |
| Width [y] | 5.1 mm |
| Width [y] | 0.201 in |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
T50SDP6 Series
Standard, Locking Black 1.22" (31.00mm) 0.201" (5.10mm) 45 lbs (20.41 kg)
