3PS-250-2-VT-2

Active

BRADY

SLEEVE, 0.25 IN DIA X 1 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.25 IN DIA X 1 IN W

Technical Specifications

Parameters and characteristics for this part

Part	Color	Label Type	Label Size [diameter]	Label Size [Min]	Label Size [Max]	Label Size [x]	Label Size [Max]	Label Size [diameter]	Label Size [x]	Label Size [Min]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [x]	Label Size [diameter]
BRADY 3PS-250-2-WT-SC-2	White	Heat Shrinkable	0.25 in	2.4 mm	0.22 in	1 in	5.5 mm	6.4 mm	25.4 mm	0.09 "	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-250-2-PK-S	Pink	Heat Shrinkable						0.09 in 0.22 in 0.25 in	50.8 mm		Polyolefin (PO)	135 °C	-55 °C	50.8 mm	2.4 mm 5.5 mm 6.4 mm
BRADY 3PS-250-2-GR	Green	Heat Shrinkable						0.09 in 0.22 in 0.25 in	50.8 mm		Polyolefin (PO)	135 °C	-55 °C	50.8 mm	2.4 mm 5.5 mm 6.4 mm
BRADY 3PS-250-2-GY	Gray	Heat Shrinkable						0.09 in 0.22 in 0.25 in	50.8 mm		Polyolefin (PO)	135 °C	-55 °C	50.8 mm	2.4 mm 5.5 mm 6.4 mm
BRADY 3PS-250-2-YL-2	Yellow	Heat Shrinkable	0.25 in	2.4 mm	0.22 in	1 in	5.5 mm	6.4 mm	25.4 mm	0.09 "	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-250-2-YL	Yellow	Heat Shrinkable						0.09 in 0.22 in 0.25 in	50.8 mm		Polyolefin (PO)	135 °C	-55 °C	50.8 mm	2.4 mm 5.5 mm 6.4 mm
BRADY 3PS-250-2-WT-S-2	White	Heat Shrinkable	0.25 in	2.4 mm	0.22 in	1 in	5.5 mm	6.4 mm	25.4 mm	0.09 "	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-250-2-VT-S-2	Violet	Heat Shrinkable	0.25 in	2.4 mm	0.22 in	1 in	5.5 mm	6.4 mm	25.4 mm	0.09 "	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-250-2-BK-S-2	Black	Heat Shrinkable	0.25 in	2.4 mm	0.22 in	1 in	5.5 mm	6.4 mm	25.4 mm	0.09 "	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-250-2-VT-2	Violet	Heat Shrinkable	0.25 in	2.4 mm	0.22 in	1 in	5.5 mm	6.4 mm	25.4 mm	0.09 "	Polyolefin (PO)	135 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2914.03

General part information

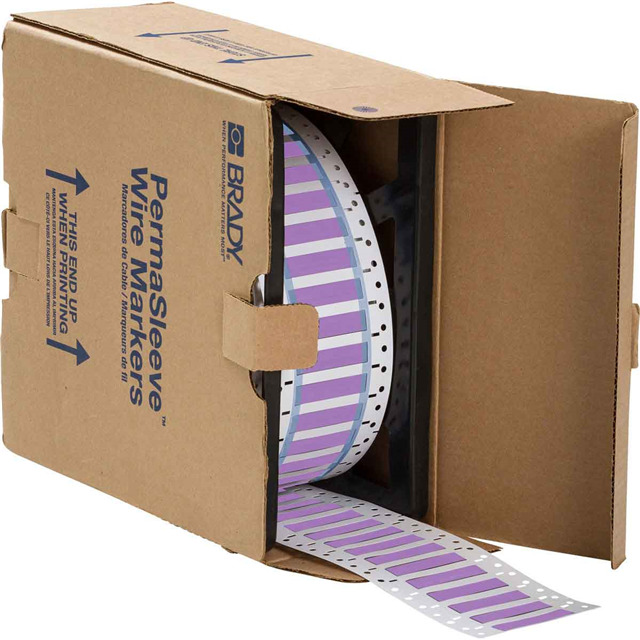

Violet Heat Shrinkable Label 1.00" W x 0.25" Dia (25.4mm x 6.4mm); Cable O.D. 0.09" ~ 0.22" (2.4mm ~ 5.5mm)
