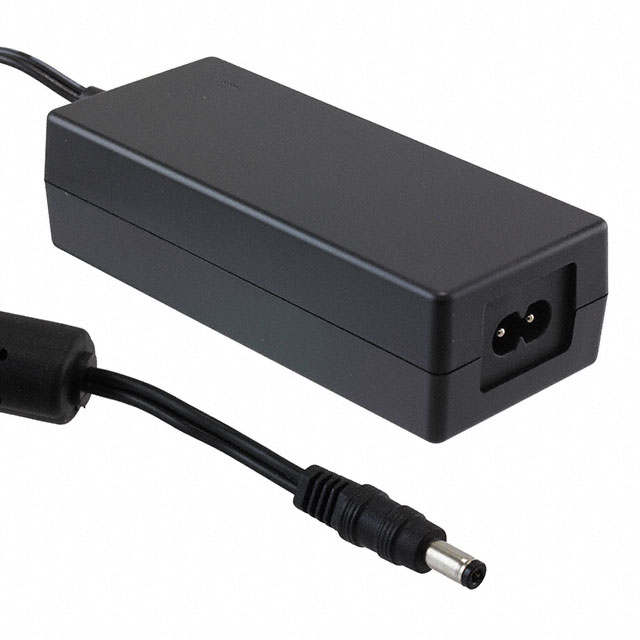

TR9KE5000LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KE5000LCP-N(R6B)

Applications	Household Appliances, ITE (Commercial)
Approval Agency	LPS, EAC, CCC, GS, CE, RCM, CB, FCC, VCCI, UKRSepro, cULus, PSE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.76 "
Size / Dimension [x]	121 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Standard Number	60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	No Load Power Consumption [Max]	Standard Number	Input Type	Applications	Region Utilized	Current - Output (Max) [Max]	Approval Agency	Input Connector	Form	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length
GlobTek, Inc. TR9KE5000LCP-N(R6B)	60 W	40 °C	0 °C	52 mm	4.76 "	2.05 in	121 mm	1.3 "	33 mm	Positive Center	90 VAC	264 VAC	Level VI	150 mW	60335-1 60950-1	Cord	Household Appliances ITE (Commercial)	International	5 A	CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI	IEC 320-C8	Desktop (Class II)	12 V	Barrel Plug	2.5 mm 5.5 mm	11 mm	1.2 m	47.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 60 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
