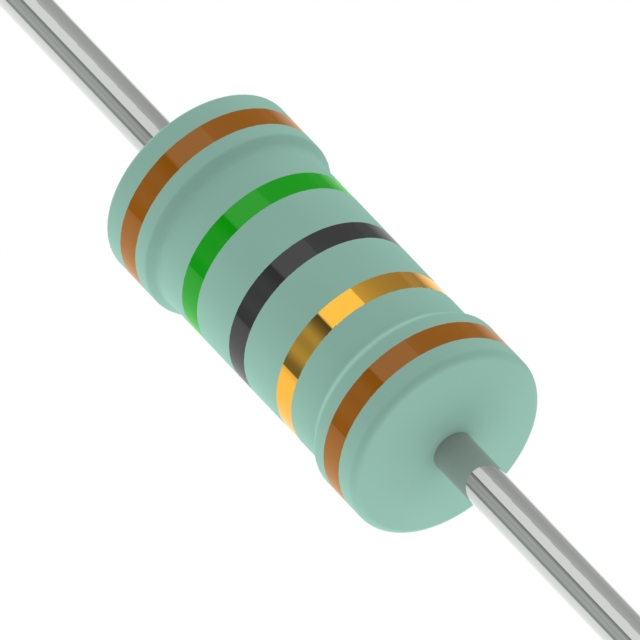

WS3A15R0J

Active

Bourns Inc.

RES 15 OHM 5% 3W AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

RES 15 OHM 5% 3W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	WS3A15R0J

Composition	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	3 W
Resistance	15 Ohms
Size / Dimension [diameter]	6.5 mm
Size / Dimension [diameter]	0.256 in
Size / Dimension [x]	0.689 in
Size / Dimension [x]	17.5 mm
Supplier Device Package	Axial
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

Part	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Composition	Supplier Device Package	Temperature Coefficient	Power (Watts)	Number of Terminations	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Features
Bourns Inc. WS3A15R0J	Axial	0.689 in	6.5 mm	17.5 mm	0.256 in	Wirewound	Axial	200 ppm/°C	3 W	2	15 Ohms	-55 °C	200 °C	5 %	Flame Retardant Coating Pulse Withstanding Safety

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
