100025489

Active

Telegartner Inc

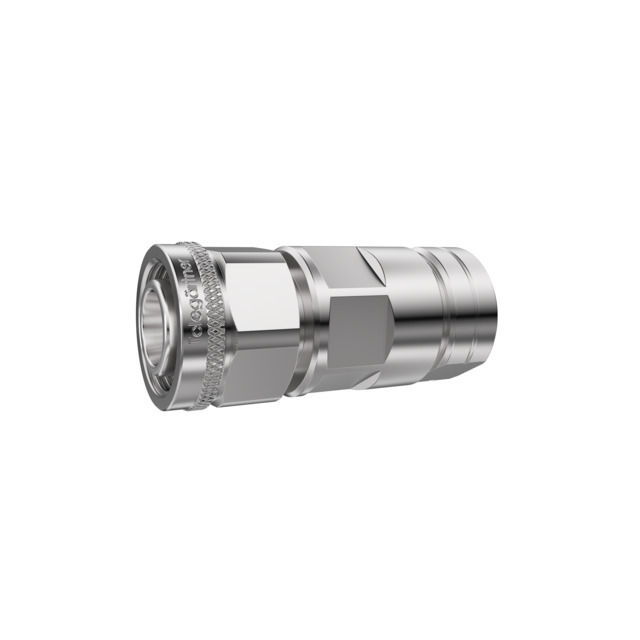

2.2-5 STRAIGHT PLUG PUSH-PULL

Search across all available documentation for this part.

Active

Telegartner Inc

2.2-5 STRAIGHT PLUG PUSH-PULL

Technical Specifications

Parameters and characteristics for this part

Specification	100025489

Body Finish	White Bronze
Center Contact Plating	Silver
Connector Style	2.2/5
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp

Part	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Number of Ports	Mounting Type	Contact Termination	Body Finish	Connector Type	Ingress Protection	Impedance	Connector Style	Shield Termination	Housing Color	Center Contact Material	Body Material	Cable Group	Voltage Rating
Telegartner Inc 100025489	Silver	3 GHz	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	1	Free Hanging (In-Line)	Crimp Solder	White Bronze	Male Pin Plug	IP68 - Dust Tight Waterproof	50 Ohms	2.2/5	Clamp	Silver
Telegartner Inc 100025486	Silver	6000 MHz	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	1	Free Hanging (In-Line) Right Angle	Solder	Silver	Male Pin Plug	IP68 - Dust Tight Waterproof	50 Ohms	2.2/5	Solder	Silver	Brass	Brass	RG-401
Telegartner Inc 100025480	Silver	6000 MHz	90 °C	-55 °C	Polytetrafluoroethylene (PTFE)	1	Free Hanging (In-Line)	Solder	Silver	Male Pin Plug	IP68 - Dust Tight Waterproof	50 Ohms	2.2/5	Solder	Silver			RG-402	1000 VDC
Telegartner Inc 100025487	Silver	6000 MHz	70 °C	-30 ░C	Polytetrafluoroethylene (PTFE)	1	Free Hanging (In-Line)	Crimp	Silver	Male Pin Plug	IP68 - Dust Tight Waterproof	50 Ohms	2.2/5	Crimp	Silver			LMR-240

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2/5 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
