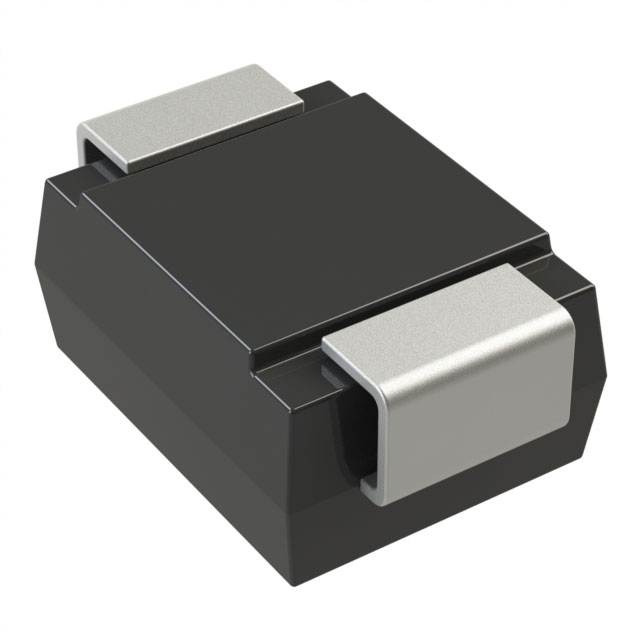

3.0SMCJ58AQ-13

Active

Diodes Inc

3000W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

Deep-Dive with AI

Search across all available documentation for this part.

3.0SMCJ58AQ-13

Active

Diodes Inc

3000W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.0SMCJ58AQ-13

Applications	General Purpose
Capacitance @ Frequency	1500 pF
Current - Peak Pulse (10/1000µs)	32.1 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SMC
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	64.4 V
Voltage - Clamping (Max) @ Ipp [Max]	93.6 V
Voltage - Reverse Standoff (Typ)	58 V

3.0SMCJ7.0CA Series

3000W Surface-Mount Automotive Transient Voltage Suppressor

Part	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Qualification	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp	Type	Grade	Power - Peak Pulse	Power - Peak Pulse	Mounting Type	Unidirectional Channels [custom]	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Capacitance @ Frequency
Diodes Inc 3.0SMCJ51AQ-13	36.4 A	51 V	AEC-Q101	DO-214AB SMC	-55 °C	150 °C	82.4 V	Zener	Automotive	3000 W	3 kW	Surface Mount	1	SMC
Diodes Inc 3.0SMCJ78A-13	23.8 A	78 V		DO-214AB SMC	-55 °C	150 °C	126 V	Zener		3000 W	3 kW	Surface Mount	1	SMC	86.7 V	General Purpose
Diodes Inc 3.0SMCJ60A-13	31 A	60 V		DO-214AB SMC	-55 °C	150 °C		Zener		3000 W	3 kW	Surface Mount	1	SMC	66.7 V	General Purpose	96.8 V
Diodes Inc 3.0SMCJ85CA-13	21.9 A	85 V		DO-214AB SMC	-55 °C	150 °C	137 V	Zener		3000 W	3 kW	Surface Mount		SMC	94.4 V	General Purpose		1
Diodes Inc 3.0SMCJ85AQ-13	21.9 A	85 V	AEC-Q101	DO-214AB SMC	-55 °C	150 °C	137 V	Zener	Automotive	3000 W	3 kW	Surface Mount	1	SMC	94.4 V
Diodes Inc 3.0SMCJ26A-13	71.3 A	26 V		DO-214AB SMC	-55 °C	150 °C		Zener		3000 W	3 kW	Surface Mount	1	SMC	28.9 V	General Purpose	42.1 V
Diodes Inc 3.0SMCJ8.5A-13	208.3 A	8.5 V		DO-214AB SMC	-55 °C	150 °C	14.4 V	Zener		3000 W	3 kW	Surface Mount	1	SMC	9.44 V	General Purpose
Diodes Inc 3.0SMCJ58AQ-13	32.1 A	58 V	AEC-Q101	DO-214AB SMC	-55 °C	175 ░C		Zener	Automotive	3000 W	3 kW	Surface Mount	1	SMC	64.4 V	General Purpose	93.6 V		1500 pF
Diodes Inc 3.0SMCJ28A-13	66.1 A	28 V		DO-214AB SMC	-55 °C	175 ░C		Zener		3000 W	3 kW	Surface Mount	1	SMC	31.1 V	General Purpose	45.4 V		1800 pF
Diodes Inc 3.0SMCJ24CA-13	77.1 A	24 V		DO-214AB SMC	-55 °C	150 °C		Zener		3000 W	3 kW	Surface Mount		SMC	26.7 V	General Purpose	38.9 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.61
		6000	$ 0.60

Description

General part information

3.0SMCJ7.0CA Series

This device is suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605.
