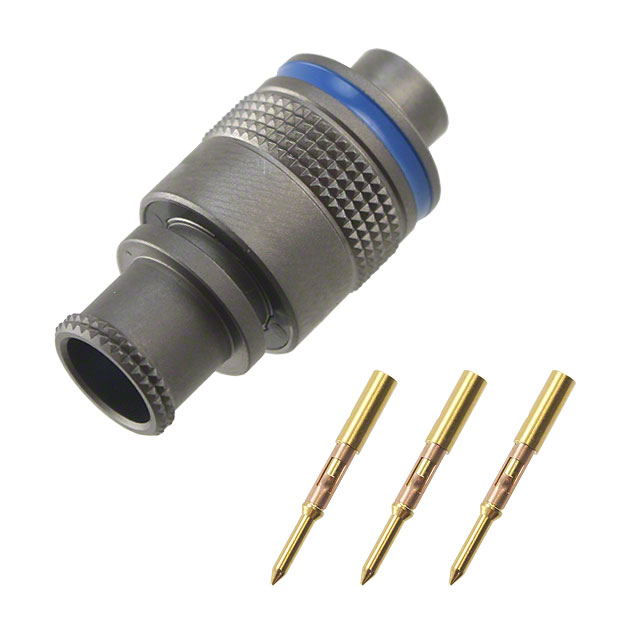

FMN.0M.303.XLCT

Active

LEMO

CONN PLUG MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FMN.0M.303.XLCT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	8 mm
Cable Opening [diameter]	0.315 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	8 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	303
Shielding	Shielded
Termination	Crimp

Part	Shielding	Current Rating (Amps)	Color	Shell Finish	Mounting Type	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Primary Material	Contact Material	Contact Finish - Mating	Connector Type	Ingress Protection	Applications	Number of Positions
LEMO FMN.0M.303.XLCT	Shielded	8 A	Gray	Nickel	Free Hanging (In-Line)	Aluminum Alloy	8 mm	0.315 in	Polyetheretherketone (PEEK)	303	1 µm	39.4 µin	Coupling Nut	N	-55 °C	200 °C	Crimp	Metal	Brass	Gold	Male Pins Plug	IP68 - Dust Tight Waterproof	Aerospace Automotive Aviation Military
LEMO FMN.0M.302.XLCT	Shielded	10 A	Gray	Nickel	Free Hanging (In-Line)	Aluminum Alloy	8 mm	0.315 in	Polyetheretherketone (PEEK)	302	1 µm	39.4 µin	Coupling Nut	N	-55 °C	200 °C	Crimp	Metal	Brass	Gold	Male Pins Plug	IP68 - Dust Tight Waterproof	Aerospace Automotive Aviation Military	2
LEMO FMN.0M.304.XLCT	Shielded	7 A	Gray	Nickel	Free Hanging (In-Line)	Aluminum Alloy	8 mm	0.315 in	Polyetheretherketone (PEEK)	304	1 µm	39.4 µin	Coupling Nut	N	-55 °C	200 °C	Crimp	Metal	Brass	Gold	Male Pins Plug	IP68 - Dust Tight Waterproof	Aerospace Automotive Aviation Military	4
LEMO FMN.0M.305.XLC	Shielded	6.5 A	Gray	Nickel	Free Hanging (In-Line)	Aluminum Alloy	8 mm	0.315 in	Polyetheretherketone (PEEK)	305	1 µm	39.4 µin	Coupling Nut	N	-55 °C	200 °C	Crimp	Metal	Brass	Gold	Male Pins Plug	IP68 - Dust Tight Waterproof	Aerospace Automotive Aviation Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Crimp
