PJMD990N65EC_L2_00001

Active

Panjit International Inc.

650V SUPER JUNCTION MOSFET

Search across all available documentation for this part.

Active

Panjit International Inc.

650V SUPER JUNCTION MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	PJMD990N65EC_L2_00001

Current - Continuous Drain (Id) @ 25°C	4.7 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	9.7 nC
Input Capacitance (Ciss) (Max) @ Vds	306 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

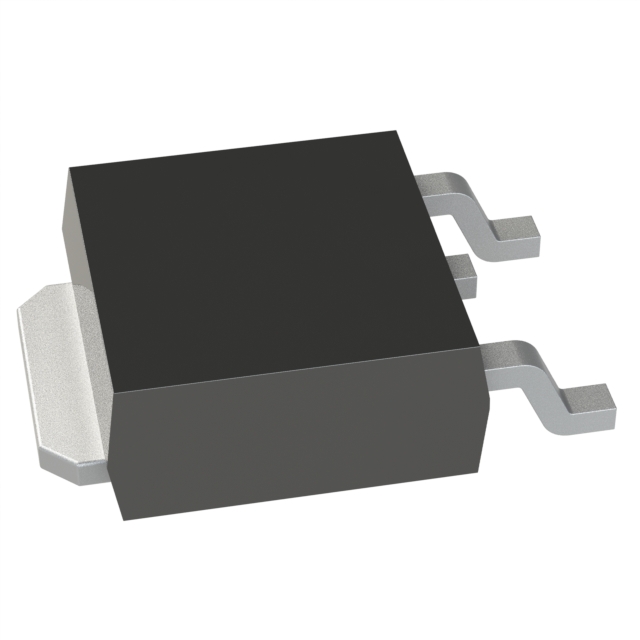

Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	47.5 W
Rds On (Max) @ Id, Vgs	990 mOhm
Supplier Device Package	TO-252AA
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max) @ Id	4 V

Part	Vgs(th) (Max) @ Id	Technology	Power Dissipation (Max)	Drain to Source Voltage (Vdss)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs
Panjit International Inc. PJMD990N65EC_L2_00001	4 V	MOSFET (Metal Oxide)	47.5 W	650 V	Surface Mount	4.7 A	N-Channel	306 pF	10 V	30 V	TO-252AA	-55 °C	150 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	9.7 nC	990 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 650 V 4.7A (Tc) 47.5W (Tc) Surface Mount TO-252AA
