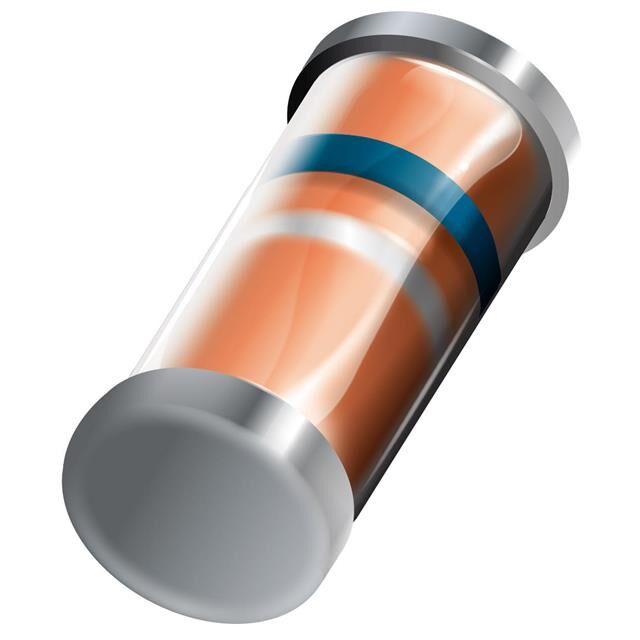

BZV55C33 L1G

Active

Taiwan Semiconductor Corporation

DIODE ZENER 33V 500MW MINI MELF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BZV55C33 L1G

Active

Taiwan Semiconductor Corporation

DIODE ZENER 33V 500MW MINI MELF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BZV55C33 L1G

Current - Reverse Leakage @ Vr	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	MINI-MELF, DO-213AC, SOD-80
Power - Max [Max]	500 mW
Supplier Device Package	Mini MELF
Tolerance	5 %
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Zener (Nom) (Vz)	33 V

BZV55C Series

Part	Supplier Device Package	Tolerance	Voltage - Forward (Vf) (Max) @ If	Impedance (Max) (Zzt) [Max]	Power - Max [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Zener (Nom) (Vz)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Taiwan Semiconductor Corporation BZV55C47 L0G	Mini MELF	5 %	1 V	110 Ohms	500 mW	Surface Mount	100 nA	47 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C2V4 L0G	Mini MELF	5 %	1 V	85 Ohms	500 mW	Surface Mount	50 ÁA	2.4 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C3V0 L1G	Mini MELF	5 %	1 V	85 Ohms	500 mW	Surface Mount	4 µA	3 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C10	Mini MELF	5 %	1 V	15 Ohms	500 mW	Surface Mount	100 nA	10 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C30 L1G	Mini MELF	5 %	1 V		500 mW	Surface Mount	100 nA	30 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C10 L0G	Mini MELF	5 %	1 V	15 Ohms	500 mW	Surface Mount	100 nA	10 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C22 L0G	Mini MELF	5 %	1 V	55 Ohms	500 mW	Surface Mount	100 nA	22 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C62 L0G	Mini MELF	5 %	1 V	150 Ohms	500 mW	Surface Mount		62 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C33 L1G	Mini MELF	5 %	1 V		500 mW	Surface Mount	100 nA	33 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80
Taiwan Semiconductor Corporation BZV55C56 L1G	Mini MELF	5 %	1 V	135 Ohms	500 mW	Surface Mount	100 nA	56 V	175 ░C	-65 °C	DO-213AC MINI-MELF SOD-80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.03
		20000	$ 0.03
		30000	$ 0.03
		50000	$ 0.02
		70000	$ 0.02
		100000	$ 0.02
		250000	$ 0.02

Description

General part information

BZV55C Series

Zener Diode 33 V 500 mW ±5% Surface Mount Mini MELF
