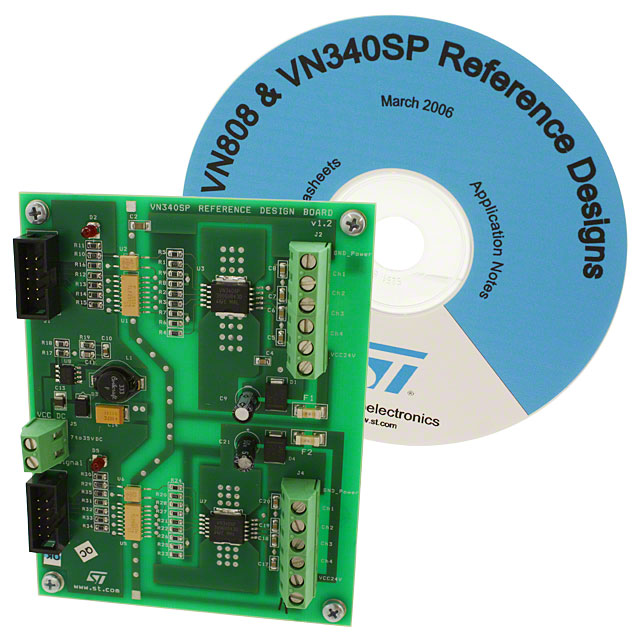

STEVAL-IFP003V1

Obsolete

STMicroelectronics

EVAL BOARD FOR VN340

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STEVAL-IFP003V1

Obsolete

STMicroelectronics

EVAL BOARD FOR VN340

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-IFP003V1

Contents	Board(s)
Embedded	False
Function	High Side Driver (Internal FET)
Primary Attributes	4-Channel (Quad)
Secondary Attributes	Thermal, Short-Circuit, Undervoltage Protection
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	VN340

VN340SP-33-E Series

Quad high side smart power solid state relay

Part	Function	Type	Primary Attributes	Supplied Contents	Utilized IC / Part	Contents	Secondary Attributes	Mounting Type	Switch Type	Output Configuration	Output Type	Features	Number of Outputs	Input Type	Fault Protection	Package / Case	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Typ)	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]
STMicroelectronics STEVAL-IFP003V1	High Side Driver (Internal FET)	Power Management	4-Channel (Quad)	Board(s)	VN340	Board(s)	Short-Circuit Thermal Undervoltage Protection
STMicroelectronics VN340SP-33-E								Surface Mount	General Purpose	High Side	N-Channel	Status Flag	4	Non-Inverting	Current Limiting (Fixed) Over Temperature	PowerSO-10 Exposed Bottom Pad	1:1	1 A	On/Off	-40 °C	125 ¯C	200 mOhm	10-PowerSO	36 V	10 V
STMicroelectronics VN340SP-E								Surface Mount	General Purpose	High Side	N-Channel	Status Flag	4	Non-Inverting	Current Limiting (Fixed) Over Temperature	PowerSO-10 Exposed Bottom Pad	1:1	700 mA	On/Off	-40 °C	125 ¯C	200 mOhm	10-PowerSO	36 V	10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VN340SP-33-E Series

VN340SP-E & VN340SP-33-E are monolithic devices developed using STMicroelectronics' VIPower technology, intended to drive four independent resistive or inductive loads with one side connected to ground. Active current limitation prevents dropping of the system power supply in case of shorted load. Built-in thermal shutdown protects the chip from overtemperature and short-circuit. The open drain diagnostic output indicates overtemperature conditions. Each I/O is pulled down when the overtemperature condition of the relative channel is verified.
