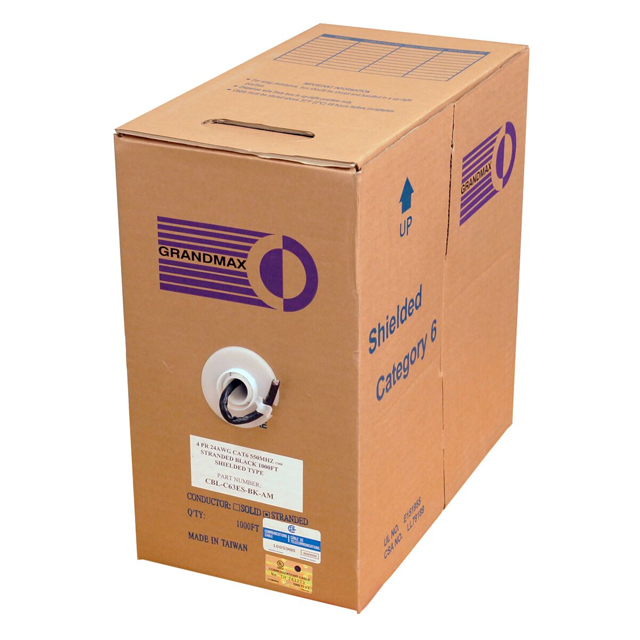

CBL-C63ES-BK-AM
ActiveY.C. Cable (East)
CABLE CAT6 8COND 24AWG BLK 1000'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBL-C63ES-BK-AM
ActiveY.C. Cable (East)
CABLE CAT6 8COND 24AWG BLK 1000'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBL-C63ES-BK-AM |
|---|---|
| Cable Type | Multi-Pair, Cat6 |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 0.0075 in |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.6 mm |
| Jacket (Insulation) Diameter [diameter] | 0.26 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Ratings | UL Style CMR |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 24 AWG |
CBL-C63 Series
| Part | Cable Type | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Material | Number of Conductors | Features | Jacket (Insulation) Material | Conductor Insulation | Length | Length | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Coverage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | 5.79 mm | 0.228 in | Copper Bare | 8 | Flame Retardant | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Black | 0.0075 in | 7 | ||||||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | Copper Bare | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Orange | 0.0075 in | 7 | 100 % | UL Style CMR | 6.6 mm | 0.26 in | Foil | Aluminum | ||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | Copper Bare | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Black | 0.0075 in | 7 | 100 % | UL Style CMR | 6.6 mm | 0.26 in | Foil | Aluminum | ||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | Copper Bare | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | 0.0075 in | 7 | 100 % | UL Style CMR | 6.6 mm | 0.26 in | Foil | Aluminum | |||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | 5.79 mm | 0.228 in | Copper Bare | 8 | Flame Retardant | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Yellow | 0.0075 in | 7 | ||||||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | 5.79 mm | 0.228 in | Copper Bare | 8 | Flame Retardant | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Green | 0.0075 in | 7 | ||||||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | 5.79 mm | 0.228 in | Copper Bare | 8 | Flame Retardant | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Orange | 0.0075 in | 7 | ||||||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | Copper Bare | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Gray | 0.0075 in | 7 | 100 % | UL Style CMR | 6.6 mm | 0.26 in | Foil | Aluminum | ||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | Copper Bare | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Yellow | 0.0075 in | 7 | 100 % | UL Style CMR | 6.6 mm | 0.26 in | Foil | Aluminum | ||
Y.C. Cable (East) | Multi-Pair Cat6 | 24 AWG | Copper Bare | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | Violet | 0.0075 in | 7 | 100 % | UL Style CMR | 6.6 mm | 0.26 in | Foil | Aluminum |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CBL-C63 Series
8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Black 24 AWG Foil 1000.0' (304.8m)
