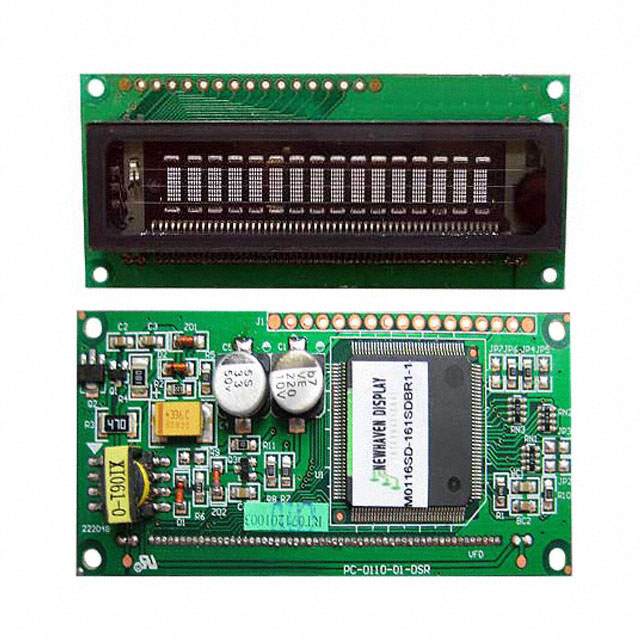

M0116SD-161SDBR1-1

Obsolete

Newhaven Display Intl

MODULE VF CHAR 1X16 5.29MM

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

MODULE VF CHAR 1X16 5.29MM

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [y]	Viewing Area [x]	Controller Type	Operating Temperature [Min]	Operating Temperature [Max]	Display Format [x]	Display Format [y]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Interface	Display Type	Format [x]	Format [y]	Character Size [z]	Character Size [y]	Character Size [x]	Voltage - Supply [Min]	Voltage - Supply [Max]
Newhaven Display Intl M0116SD-161SDBR1-1	5.29 mm	51.5 mm	PT6314	-20 C	70 °C	16	1	80 mm	11 mm	36 mm	Parallel/Serial	Character	5 Dots	8 Dots	5.29 mm	2.1 mm
Newhaven Display Intl M0116SD-161SDBR1-S	5.1 mm	61.8 mm	PT63021	-40 °C	85 °C	16	1	100 mm	9.5 mm	28 mm	Serial	Character	5 Dots	7		2.55 mm	5.1 mm	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Vacuum Fluorescent Display (VFD) 16 x 1 Character 5V Parallel/Serial 80.00mm x 36.00mm x 11.00mm
