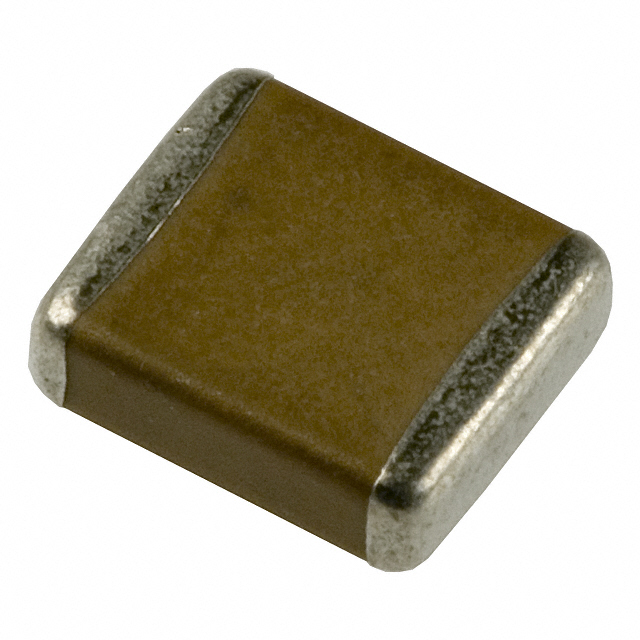

GA355QR7GF182KW01L
ActiveMurata Power Solutions Inc.
CAP CER 1800PF 250VAC X7R 2220
Deep-Dive with AI
Search across all available documentation for this part.
GA355QR7GF182KW01L
ActiveMurata Power Solutions Inc.
CAP CER 1800PF 250VAC X7R 2220
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GA355QR7GF182KW01L |
|---|---|
| Applications | Safety |
| Capacitance | 1800 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 5750 Metric |
| Package / Case | 2220 |
| Ratings [custom] | 2 |
| Ratings [custom] | 1 |
| Size / Dimension [x] | 0.224 in |
| Size / Dimension [x] | 5.7 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Temperature Coefficient | X7R |
| Thickness (Max) | 1.5 mm |
| Thickness (Max) [Max] | 0.059 " |
| Tolerance | 10 % |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 0.85 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.36 | ||
| 10 | $ 0.85 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.48 | |||
| Tape & Reel (TR) | 1000 | $ 0.44 | ||
| 2000 | $ 0.41 | |||
| 3000 | $ 0.40 | |||
| 5000 | $ 0.38 | |||
| 7000 | $ 0.37 | |||
| 10000 | $ 0.37 | |||
| 25000 | $ 0.35 | |||
Description
General part information
GA355QR7GF Series
1800 pF ±10% 250VAC Ceramic Capacitor X7R 2220 (5750 Metric)
