D02-22-22P-10000
ActiveJAE Electronics

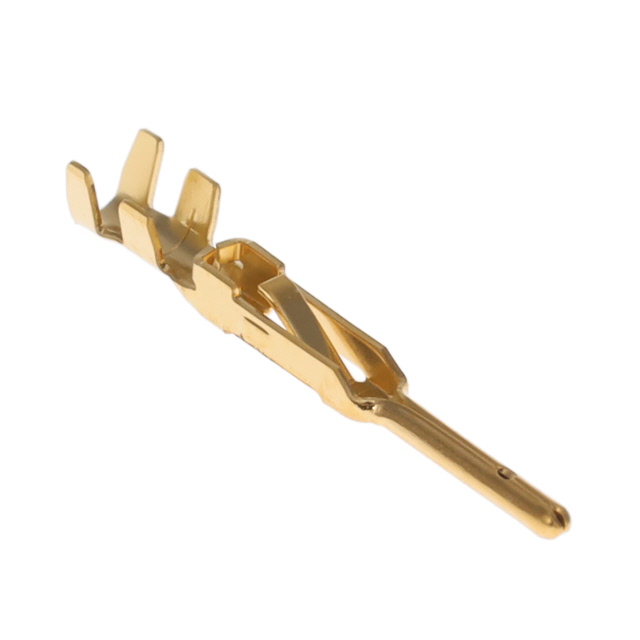

CONN PIN 22-24AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D02-22-22P-10000
ActiveJAE Electronics
CONN PIN 22-24AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D02-22-22P-10000 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 10000 | $ 0.09 | ||
| 20000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
Description
General part information
D02-22-2 Series
Pin Contact Gold Crimp 22-24 AWG Stamped
