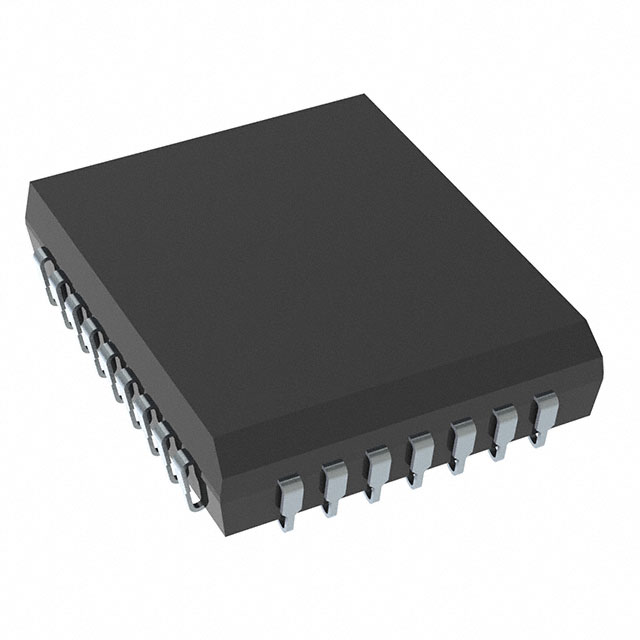

AS29CF040-55CCIN

Active

Alliance Memory, Inc.

NOR FLASH 4MBIT 512K X 8BIT PARALLEL 5V 55NS 32-PIN PLCC

Search across all available documentation for this part.

Active

Alliance Memory, Inc.

NOR FLASH 4MBIT 512K X 8BIT PARALLEL 5V 55NS 32-PIN PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	AS29CF040-55CCIN

Access Time	55 ns
Memory Format	FLASH
Memory Interface	Parallel
Memory Organization	512 K
Memory Size	512 kb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	32-LCC (J-Lead)
Supplier Device Package	32-PLCC
Supplier Device Package [x]	13.97
Supplier Device Package [y]	11.43
Technology	FLASH - NOR
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V
Write Cycle Time - Word, Page [custom]	55 ns
Write Cycle Time - Word, Page [custom]	55 ns

Part	Memory Format	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Access Time	Memory Type	Memory Interface	Memory Size	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Organization	Technology	Package / Case	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]
Alliance Memory, Inc. AS29CF040-55CCIN	FLASH	55 ns	55 ns	55 ns	Non-Volatile	Parallel	512 kb	Surface Mount	85 °C	-40 °C	4.5 V	5.5 V	512 K	FLASH - NOR	32-LCC (J-Lead)	32-PLCC	11.43	13.97

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5.0V ± 10% for read and write operations

Access times:55 (max.)

55 (max.)
