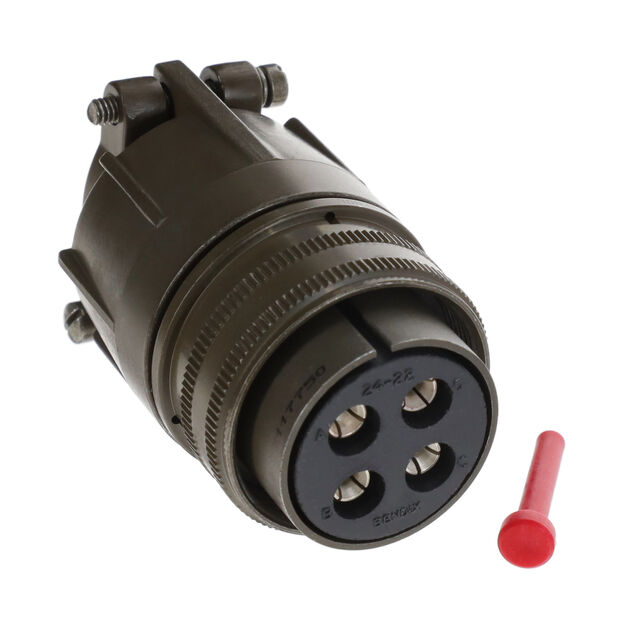

MS3106E24-22S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 4P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106E24-22S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 4P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E24-22S

Applications	Military, Marine
Cable Opening [custom]	0.781 in
Cable Opening [custom]	19.84 mm
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-22
Shielding	Unshielded

MS3106E24 Series

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Contact Finish - Mating	Insert Material	Ingress Protection	Number of Positions	Qualification	Applications	Color	Shielding	Mounting Type	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Contact Material	Shell Finish	Features	Shell Size - Insert	Current Rating (Amps)	Grade	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations MS3106E24-22S	Female Sockets Plug	-55 °C	125 °C	N	Metal	Silver	Neoprene	Environment Resistant	4	MIL-5015	Marine Military	Olive Drab	Unshielded	Free Hanging (In-Line)	Aluminum Alloy	0.781 in	19.84 mm	Copper Alloy	Olive Drab Chromate over Cadmium	Backshell Cable Clamp Coupling Nut	24-22
Amphenol Industrial Operations MS3106E24-7S	Female Sockets Plug	-55 °C	125 °C	N	Metal	Silver	Neoprene	Environment Resistant		MIL-DTL-5015	Marine Military	Olive Drab	Unshielded	Free Hanging (In-Line)	Aluminum Alloy	0.781 in	19.84 mm	Copper Alloy	Olive Drab Chromate over Cadmium	Backshell Cable Clamp Coupling Nut	24-7	13 A 23 A	Military	16
Amphenol Industrial Operations MS3106E24-21P
Amphenol Industrial Operations MS3106E24-58S	Female Sockets Plug	-55 °C	125 °C	N	Metal	Silver	Neoprene	Environment Resistant	13	MIL-5015	Marine Military	Olive Drab	Unshielded	Free Hanging (In-Line)	Aluminum Alloy	0.781 in	19.84 mm	Copper Alloy	Olive Drab Chromate over Cadmium	Backshell Cable Clamp Coupling Nut					24	58
Amphenol Industrial Operations MS3106E24-11PW
Amphenol Industrial Operations MS3106E24-12S	Female Sockets Plug	-55 °C	125 °C	N	Metal	Silver	Neoprene	Environment Resistant		MIL-DTL-5015	Marine Military	Olive Drab	Unshielded	Free Hanging (In-Line)	Aluminum Alloy	0.781 in	19.84 mm	Copper Alloy	Olive Drab Chromate over Cadmium	Backshell Cable Clamp Coupling Nut	24-12	23 A 80 A	Military
Amphenol Industrial Operations MS3106E24-9S	Female Sockets Plug	-55 °C	125 °C	N	Metal	Silver	Neoprene	Environment Resistant	2	MIL-5015	Marine Military	Olive Drab	Unshielded	Free Hanging (In-Line)	Aluminum Alloy	0.781 in	19.84 mm	Copper Alloy	Olive Drab Chromate over Cadmium	Backshell Cable Clamp Coupling Nut	24-9
Amphenol Industrial Operations MS3106E24-21S
Amphenol Industrial Operations MS3106E24-22SX	Female Sockets Plug	-55 °C	125 °C	X	Metal	Silver	Neoprene	Environment Resistant	4	MIL-5015	Marine Military	Olive Drab	Unshielded	Free Hanging (In-Line)	Aluminum Alloy	0.781 in	19.84 mm	Copper Alloy	Olive Drab Chromate over Cadmium	Backshell Cable Clamp Coupling Nut	24-22
Amphenol Industrial Operations MS3106E24-12PX

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.36
		10	$ 47.05
		25	$ 44.11
		50	$ 42.01
		100	$ 40.00
		250	$ 38.13

Description

General part information

MS3106E24 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
