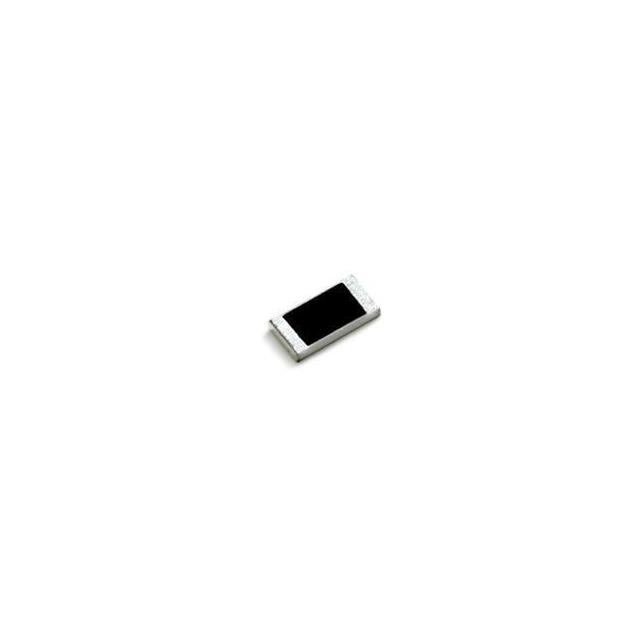

RC1206FR-075K1L
ActiveYageo America
CHIP RESISTOR
Deep-Dive with AI
Search across all available documentation for this part.
RC1206FR-075K1L
ActiveYageo America
CHIP RESISTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RC1206FR-075K1L |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 5.1 kOhms |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| 50 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.04 | |||
| 50 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| Tape & Reel (TR) | 5000 | $ 0.01 | ||
| 10000 | $ 0.01 | |||
| 11000 | $ 0.01 | |||
| 25000 | $ 0.01 | |||
| 35000 | $ 0.01 | |||
| 50000 | $ 0.01 | |||
| 66000 | $ 0.01 | |||
| 125000 | $ 0.01 | |||
| 616000 | $ 0.01 | |||
| 1881000 | $ 0.01 | |||
Description
General part information
RC1206FR-075K1L
5.1 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Thick Film
Documents
Technical documentation and resources
No documents available
