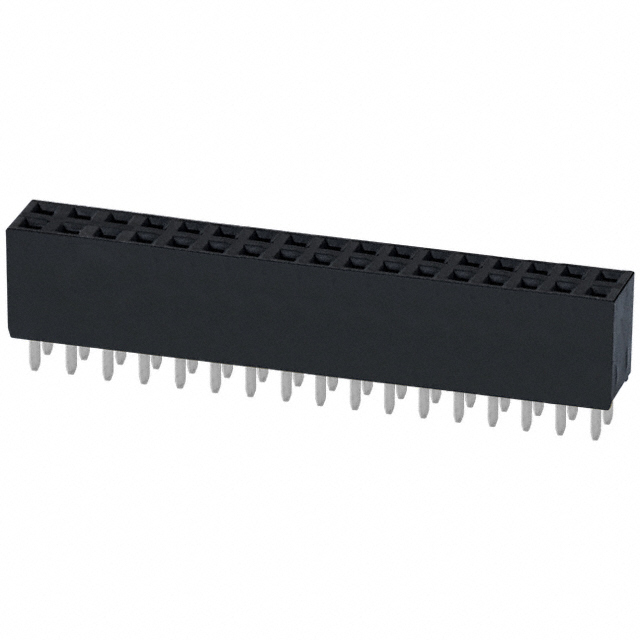

PPTC172LFBN-RC

Active

Sullins Connector Solutions

CONN HDR 34POS 0.1 TIN PCB

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 34POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC172LFBN-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Voltage Rating	Connector Type	Contact Shape	Insulation Material	Contact Material	Termination	Number of Positions Loaded	Current Rating (Amps)	Number of Rows	Contact Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Insulation Color	Contact Length - Post
Sullins Connector Solutions PPTC172LFBN-RC	Through Hole	250 VDC	Header	Square	Polyester	Phosphor Bronze	Solder	All	3 A	2	Female Socket	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	34	0.335 "	8.51 mm	3.2 mm	0.126 in	UL94 V-0	Black
Sullins Connector Solutions PPTC172LJBN-RC	Through Hole Right Angle	250 VDC	Header	Square	Polyester	Phosphor Bronze	Solder	All	3 A	2	Female Socket	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	34			3.15 mm		UL94 V-0	Black	0.124 "
Sullins Connector Solutions PPTC172LFBN	Through Hole	250 VDC	Header	Square	Polyester	Phosphor Bronze	Solder	All	3 A	2	Female Socket	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	34	0.335 "	8.51 mm	3.2 mm	0.126 in	UL94 V-0	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Header Connector 0.100" (2.54mm) Through Hole Tin
