0022552181

Active

Molex

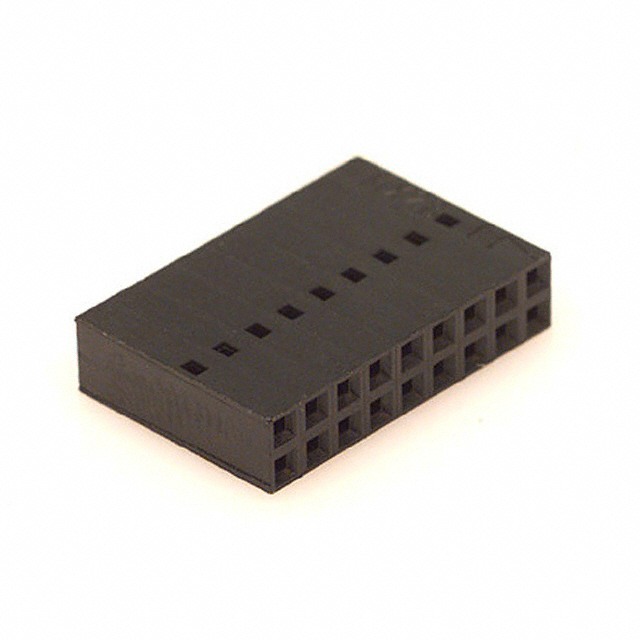

CONN RCPT HSG 18POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 70066, 70058 SL Test Summary +1

0022552181

Active

Molex

CONN RCPT HSG 18POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 70066, 70058 SL Test Summary +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022552181

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

002255 Series

Part	Note	Number of Positions	Mounting Type	Row Spacing [x]	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Color	Connector Type	Number of Rows	Features
Molex 0022552223	Contacts Not Included	22 positions	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2
Molex 0022552322	Contacts Not Included		Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2	Polarizing Key
Molex 0022552261	Contacts Not Included	26	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2
Molex 0022552302	Contacts Not Included	30	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2	Polarizing Key
Molex 0022552483	Contacts Not Included	48	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2
Molex 0022552482	Contacts Not Included	48	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2	Polarizing Key
Molex 0022552241	Contacts Not Included	24	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2
Molex 0022552221	Contacts Not Included	22 positions	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2
Molex 0022552442	Contacts Not Included	44	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2	Polarizing Key
Molex 0022552181	Contacts Not Included	18	Free Hanging (In-Line)	0.1 in	2.54 mm	-40 °C	105 ░C	Polyester Glass Filled	2.54 mm	0.1 in	Female Socket	Crimp	Black	Receptacle	2
