CPH47W23MARCSK9X

Active

Amphenol CONEC

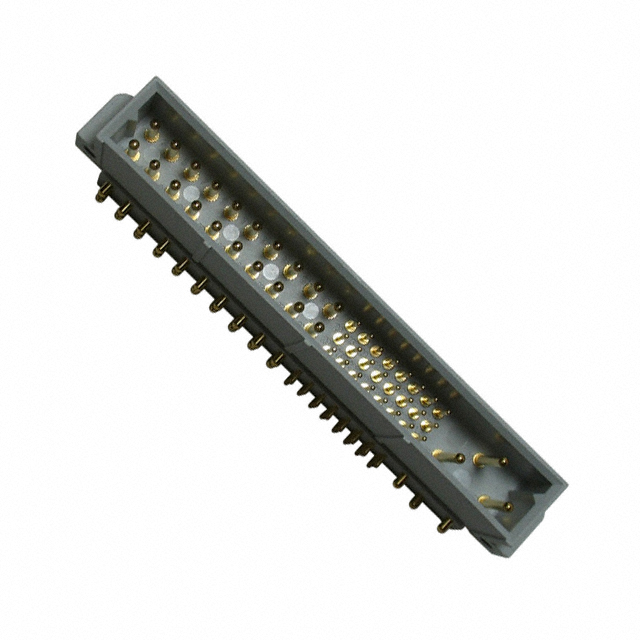

CONN PLUG COMPACT PCI 47POS PCB

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG COMPACT PCI 47POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CPH47W23MARCSK9X

Color	Gray
Connector Style	CompactPCI®
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	31.5 µin
Contact Finish Thickness	0.8 µm
Contact Layout, Typical [custom]	24
Contact Layout, Typical [custom]	23
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Style	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Connector Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish	Mounting Type	Number of Positions Loaded	Contact Finish Thickness
Amphenol CONEC CPH47W23MARCSK9X	-55 °C	125 °C	UL94 V-0	CompactPCI®	Gray	Solder	31.5 µin	0.8 µm	All	Male Pins Plug	24	23	Gold	Through Hole Right Angle
Amphenol CONEC CPH47W23FGE3SN9X	-55 °C	125 °C	UL94 V-0	CompactPCI®		Press-Fit				Receptacle Female Sockets	24	23	Gold	Through Hole	44	Flash
Amphenol CONEC CPH47W23MARASK9X	-55 °C	125 °C	UL94 V-0	CompactPCI®	Gray	Solder			All	Male Pins Plug	24	23	Gold	Through Hole Right Angle		Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 44.41

General part information

47 Connector Plug, Male Pins Through Hole, Right Angle Gray CompactPCI®
