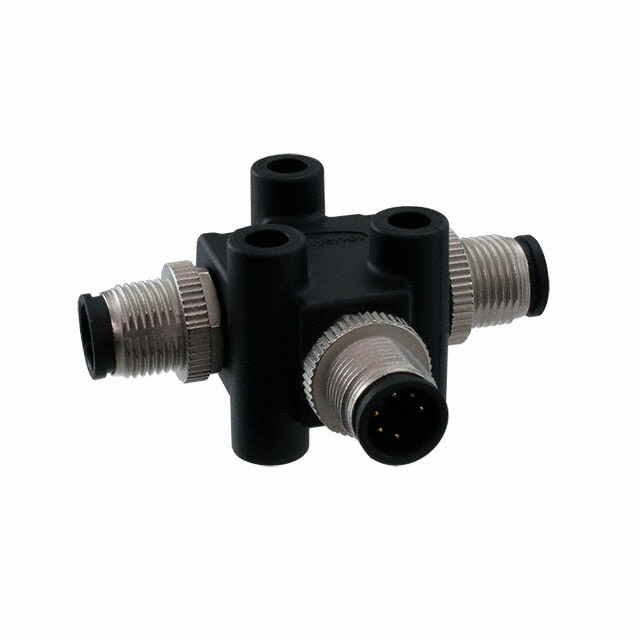

TA-A06M-A06M-A06M-01

Active

Amphenol LTW

CONN T-ADPT 6P-6/6P M-M/M INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN T-ADPT 6P-6/6P M-M/M INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	TA-A06M-A06M-A06M-01

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Male Pins (2)
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	6
Number of Positions (Convert To)	6
Number of Positions (Convert To)	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded

Part	Number of Positions (Convert To)	Number of Positions (Convert To)	Mounting Type	Shell Size - Insert (Convert From)	Shielding	Convert To (Adapter End)	Number of Positions (Convert From)	Orientation (Convert From)	Shell Size - Insert (Convert To) [custom]	Convert From (Adapter End)	Features	Orientation (Convert To)	Ingress Protection	Housing Material	Connector Style
Amphenol LTW TA-A06M-A06F-A06F-01	6	2	Free Hanging (In-Line)	M12	Unshielded	Female Sockets (2)	6	A	M12	Male Pins	Coupling Nut	A	IP68 - Dust Tight Waterproof	Thermoplastic	Distributor T-Shaped
Amphenol LTW TA-A06F-A06M-A06M-01	6	2	Free Hanging (In-Line)	M12	Unshielded	Male Pins (2)	6	A	M12	Female Sockets	Coupling Nut	A	IP68 - Dust Tight Waterproof	Thermoplastic	Distributor T-Shaped
Amphenol LTW TA-A06M-A06F-A06M-01	6	2	Free Hanging (In-Line)	M12	Unshielded	Female Sockets (1) Male Pins (1)	6	A	M12	Male Pins	Coupling Nut	A	IP68 - Dust Tight Waterproof	Thermoplastic	Distributor T-Shaped
Amphenol LTW TA-A06M-A06M-A06M-01	6	2	Free Hanging (In-Line)	M12	Unshielded	Male Pins (2)	6	A	M12	Male Pins		A	IP68 - Dust Tight Waterproof	Thermoplastic	Distributor T-Shaped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 6/6 (2) Male Pins/Male Pins (2) Free Hanging (In-Line)
