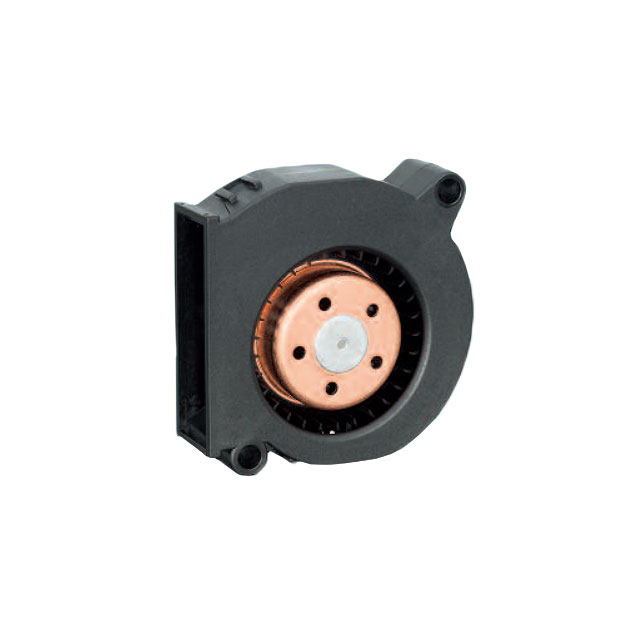

RLF35-8/12N

Active

ebm-papst Inc.

FAN BLOWER CF 51X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 51X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	RLF35-8/12N

Air Flow	5.7 CFM
Air Flow	0.16 m³/min
Approval Agency	CE
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Lifetime @ Temp.	60000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Plastic, Fiberglass Reinforced
Noise	6.4 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.5 W
RPM	6700 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	51 mm
Size / Dimension [z]	51 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	8 VDC
Width [x]	15 mm

Part	Lifetime @ Temp.	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	Approval Agency	Voltage - Rated	Material - Blade	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Noise	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	RPM	Width [x]
ebm-papst Inc. RLF35-8/12N	60000 Hrs	Square/Rounded	51 mm	51 mm	Blower Centrifugal	Ball	CE	12 VDC	Plastic Fiberglass Reinforced	5.7 CFM	0.16 m³/min	3.5 W	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	6.4 dB(A)	Plastic Fiberglass Reinforced	8 VDC	13.2 VDC	6700 RPM	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 12VDC Square/Rounded - 51mm L x 51mm H Ball 5.7 CFM (0.160m³/min) 2 Wire Leads
