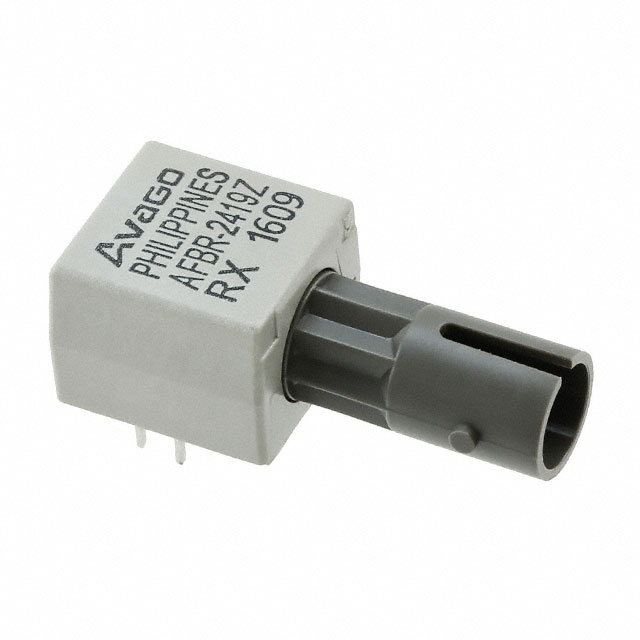

AFBR-2419Z

Active

Broadcom Limited

FIBER OPTICAL TRANSCEIVERS ROHS

Search across all available documentation for this part.

Active

Broadcom Limited

FIBER OPTICAL TRANSCEIVERS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	AFBR-2419Z

Applications	Optical
Current - Supply	20 mA
Data Rate	50 Mbps
Power - Minimum Receivable [Min]	-27 dBm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	3.135 V

Part	Data Rate	Applications	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Minimum Receivable [Min]
Broadcom Limited AFBR-2419Z	50 Mbps	Optical	20 mA	3.135 V	5.25 V	-27 dBm
Broadcom Limited AFBR-2419TZ	50 Mbps	Optical	20 mA	3.135 V	5.25 V	-27 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fiber Optic Receiver Optical 50MBd -27dBm 3.135V ~ 5.25V 20 mA

Technical documentation and resources

No documents available
