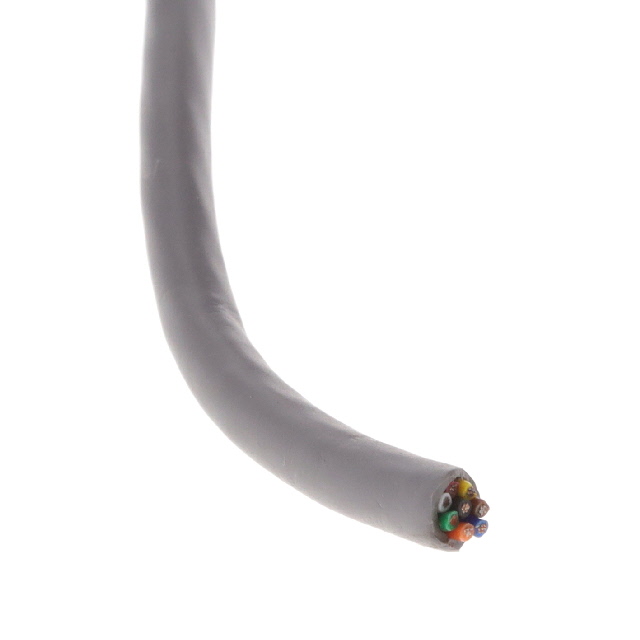

M33308 SL005
ActiveALPHA WIRE
CABLE 8COND 22AWG SLATE 100'
Deep-Dive with AI
Search across all available documentation for this part.
M33308 SL005
ActiveALPHA WIRE
CABLE 8COND 22AWG SLATE 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M33308 SL005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 5.92 mm |
| Jacket (Insulation) Diameter [diameter] | 0.233 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2576 |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 144.15 | |
| 2 | $ 137.15 | |||
| 3 | $ 133.19 | |||
| 5 | $ 128.34 | |||
| 7 | $ 125.22 | |||
| 10 | $ 121.99 | |||
| 25 | $ 113.98 | |||
| 50 | $ 109.85 | |||
Description
General part information
M33308 Series
8 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
