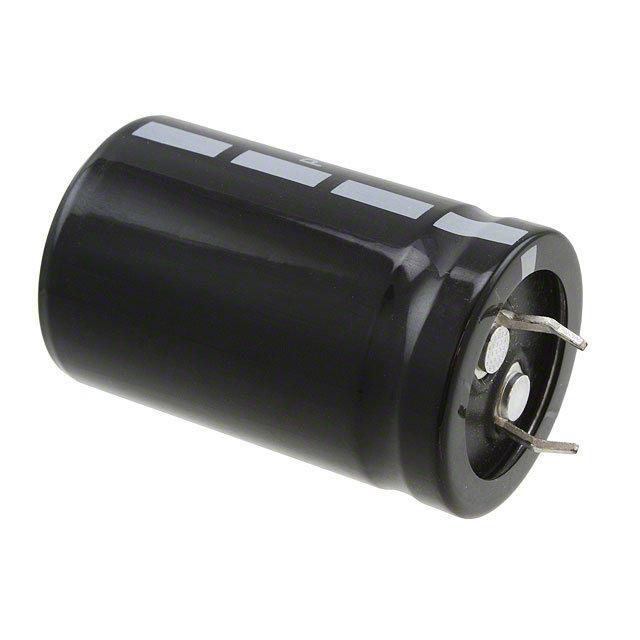

PEH534SBE3390M2

Active

KEMET

CAP ALUM 390UF 20% 250V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 390UF 20% 250V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	PEH534SBE3390M2

Applications	General Purpose
Capacitance	390 µF
ESR (Equivalent Series Resistance)	290 mOhm
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ Low Frequency	1.1 A
Size / Dimension [diameter]	25 mm
Size / Dimension [diameter]	0.984 "
Tolerance	20 %
Voltage - Rated	250 V

Part	Ripple Current @ Low Frequency	Lifetime @ Temp.	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Mounting Type	Polarization	Voltage - Rated	Applications	Capacitance
KEMET PEH534SBE3390M2	1.1 A	3000 Hrs	Radial Can - Snap-In	-40 °C	105 ░C	25 mm	0.984 "	290 mOhm	20 %	42 mm	1.654 in	0.394 in	10 mm	Through Hole	Polar	250 V	General Purpose	390 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.94
Newark	Each	1000	$ 5.49
		2500	$ 5.10

General part information

390 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 290mOhm @ 100Hz 3000 Hrs @ 105°C
