6042044

Active

SICK, Inc.

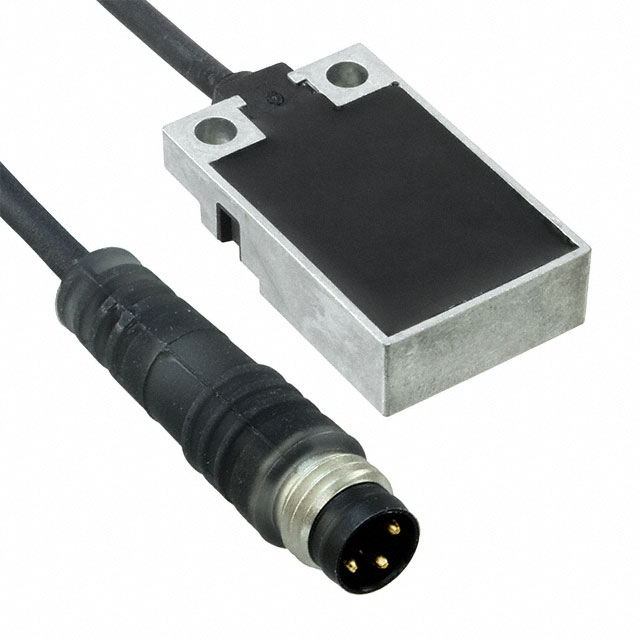

SENSOR PROX INDUCT 7MM IP67 MOD

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROX INDUCT 7MM IP67 MOD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Termination Style	Indicator [custom]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body	Sensing Distance	Sensing Distance	Sensor Type	Ingress Protection	Output Type
SICK, Inc. IQ20-07BPSDU2S	70 °C	-25 °C	Shielded	Cable Leads	LED	Module	30 VDC	10 VDC	Plastic	0.276 in	7 mm	Inductive	IP67	PNP-NO 3-Wire
SICK, Inc. 6042044	70 °C	-25 °C	Unshielded	Cable with Connector	LED	Module	30 VDC	10 VDC		0.276 in	7 mm	Inductive	IP67	NPN-NO 3-Wire
SICK, Inc. 6042045	70 °C	-25 °C	Unshielded	Cable with Connector	LED	Flange Mount	30 VDC	10 VDC		0.276 in	7 mm	Inductive	IP67	4-Wire PNP-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX INDUCT 7MM IP67 MOD

Technical documentation and resources
