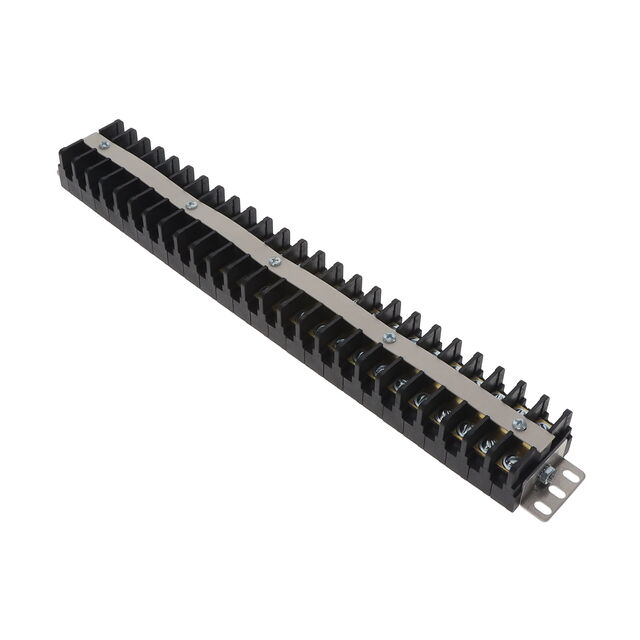

CDM-25

Active

Curtis Industries

CONN BARRIER STRP 25CIRC 0.546"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

CDM-25

Active

Curtis Industries

CONN BARRIER STRP 25CIRC 0.546"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDM-25

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	30 A
Features	Marking Strip, Flange
Material - Insulation	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	25
Number of Rows	2
Number of Wire Entries	50
Operating Temperature	130 °C
Pitch [x]	0.546 in
Pitch [x]	13.86 mm
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

CDM Series

Part	Features	Pitch [x]	Pitch [x]	Operating Temperature	Barrier Type	Current Rating (Amps)	Number of Wire Entries	Material - Insulation	Number of Circuits	Material Flammability Rating	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Mounting Type	Top Termination	Terminal Block Type	Voltage Rating	Bottom Termination
Curtis Industries CDM-32	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	64	Polyester Thermoplastic	32	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-9	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	18	Polyester Thermoplastic		UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-5	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	10	Polyester Thermoplastic	5	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-1	Flange Marking Strip			130 °C	2 Wall (Dual)	30 A	2	Polyester Thermoplastic	1	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-49	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	98	Polyester Thermoplastic	49	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-25	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	50	Polyester Thermoplastic	25	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-36	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	72	Polyester Thermoplastic	36	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-41	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	82	Polyester Thermoplastic	41	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-35	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	70	Polyester Thermoplastic	35	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed
Curtis Industries CDM-26	Flange Marking Strip	0.546 in	13.86 mm	130 °C	2 Wall (Dual)	30 A	52	Polyester Thermoplastic	26	UL94 V-0	22 AWG	10 AWG	2	Chassis Panel	Screws	Barrier Block	600 V	Closed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.15
		10	$ 68.61
		30	$ 66.07
		50	$ 65.05
		100	$ 63.53

Description

General part information

CDM Series

25 Circuit 0.546" (13.86mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
