MHDAS2F060YDE50

Active

Amphenol Socapex

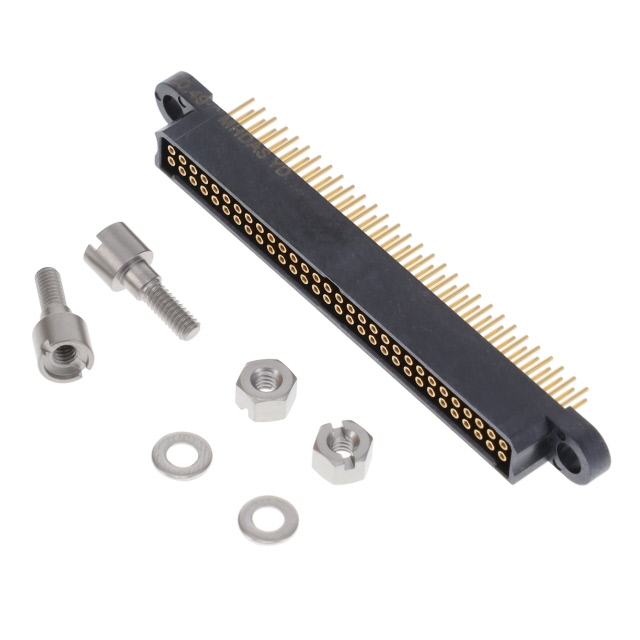

MICRO HDAS 60 FEMALE STRAIGHT PC

Search across all available documentation for this part.

Active

Amphenol Socapex

MICRO HDAS 60 FEMALE STRAIGHT PC

Technical Specifications

Parameters and characteristics for this part

Specification	MHDAS2F060YDE50

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Features	Mating Flange, Mounting Flange, Jackscrews
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	750 VDC

Part	Mounting Type	Features	Insulation Height	Insulation Height [z]	Contact Type	Number of Positions Loaded	Voltage Rating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Color	Number of Rows	Connector Type	Contact Material	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Current Rating (Amps)
Amphenol Socapex MHDAS2F060YDE50	Through Hole	Jackscrews Mating Flange Mounting Flange	5.4 mm	0.213 in	Female Socket	All	750 VDC	0.118 in	3 mm	UL94 V-0	Gold	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-65 ░C	150 °C	1.27 µm	50 µin	60	Black	2	Receptacle	Beryllium Copper	0.05 in	1.27 mm	Circular	Solder	3 A
Amphenol Socapex MHDAS2F004YDE10	Through Hole	Jackscrews Mating Flange Mounting Flange	5.4 mm	0.213 in	Female Socket	All	750 VDC	0.118 in	3 mm	UL94 V-0	Gold	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-65 ░C	150 °C	1.27 µm	50 µin	4	Black	2	Receptacle	Beryllium Copper	0.05 in	1.27 mm	Circular	Solder	3 A
