R-CX-1002-180

Active

Remington Industries

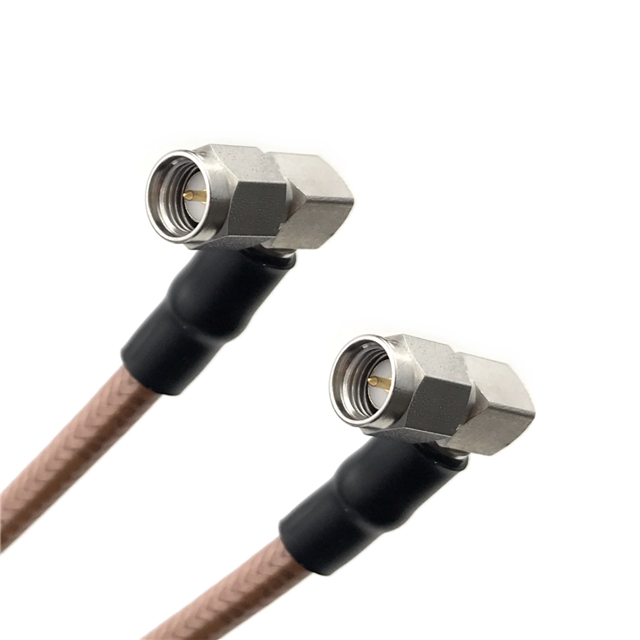

CBL ASSY SMA PLUG TO PLUG 15'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R-CX-1002-180

Active

Remington Industries

CBL ASSY SMA PLUG TO PLUG 15'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R-CX-1002-180

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-400
Color	Tan
Features	Shielded
Frequency - Max [Max]	12.4 GHz
Length	15 ft
Length	5 yd
Length	4.6 m
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Overall Impedance	50 Ohms
Style	SMA to SMA

R-CX-100 Series

Part	2nd Contact Gender	Style	1st Connector Mounting Type	Cable Type	Length	Length	Length	Overall Impedance	2nd Connector	Frequency - Max [Max]	1st Connector	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Color	1st Contact Gender
Remington Industries R-CX-1000-120	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	10 ft	3 m	10 '	50 Ohms	SMA Plug	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1001-180	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	15 ft	4.6 m	5 yd	50 Ohms	SMA Plug Right Angle	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1001-36	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	36 in	91.44 cm		50 Ohms	SMA Plug Right Angle	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1000-48	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	48 in	1200 mm	4 ft	50 Ohms	SMA Plug	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1000-96	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	96 "	2.4 m	8 '	50 Ohms	SMA Plug	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1002-180	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	15 ft	4.6 m	5 yd	50 Ohms	SMA Plug Right Angle	12.4 GHz	Right Angle SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1001-24	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	24 "	609.6 mm		50 Ohms	SMA Plug Right Angle	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1001-48	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	48 in	1200 mm	4 ft	50 Ohms	SMA Plug Right Angle	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1000-180	Male	SMA to SMA	Free Hanging (In-Line)	RG-400	15 ft	4.6 m	5 yd	50 Ohms	SMA Plug	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male
Remington Industries R-CX-1000-144	Male	SMA to SMA	Free Hanging (In-Line)	RG-400				50 Ohms	SMA Plug	12.4 GHz	SMA Plug	Free Hanging (In-Line)	165 °C	-55 °C	Shielded	Tan	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 229.81
		25	$ 218.32
		50	$ 206.83
		100	$ 195.34

Description

General part information

R-CX-100 Series

Cable Assembly Coaxial SMA to SMA RG-400 180.0" (4.6m) 15.0'
