917-43-208-41-001000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET TRANSIST TO-100 8POS

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SOCKET TRANSIST TO-100 8POS

Technical Specifications

Parameters and characteristics for this part

Specification	917-43-208-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Termination Post Length [x]	2.29 mm
Termination Post Length [x]	0.09 in
Type	Transistor, TO-100

Part	Termination	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Current Rating (Amps)	Housing Material	Contact Finish - Mating	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid)	Contact Material - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 917-43-208-41-001000	Solder	Brass Alloy	30 Áin	0.76 Ám	200 µin	5.08 µm	Closed Frame	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	2.29 mm	0.09 in	8	Beryllium Copper	Tin	-55 °C	125 °C	Transistor TO-100	Surface Mount
Mill-Max Manufacturing Corp. 917-43-108-41-005000	Solder	Brass Alloy	30 Áin	0.76 Ám	200 µin	5.08 µm	Closed Frame	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			8	Beryllium Copper	Tin	-55 °C	125 °C	Transistor TO-5	Through Hole	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 917-43-108-41-001000	Solder	Brass Alloy	30 Áin	0.76 Ám	200 µin	5.08 µm	Closed Frame	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	2.29 mm	0.09 in	8	Beryllium Copper	Tin	-55 °C	125 °C	Transistor TO-5	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	250	$ 2.19

General part information

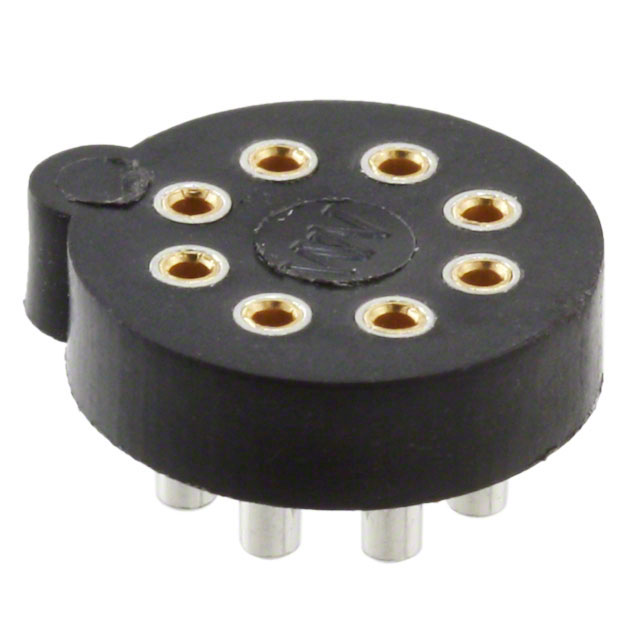

8 (Round) Pos Transistor, TO-100 Socket Gold Surface Mount
