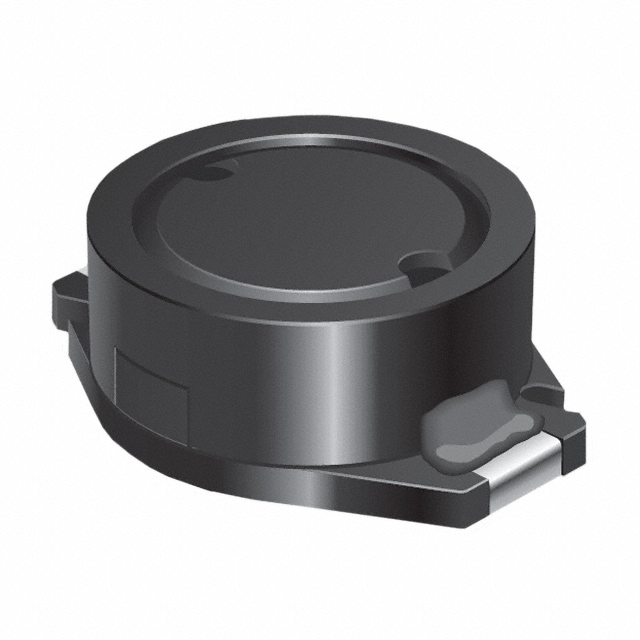

SRR0804-820K

Active

Bourns Inc.

INDUCTOR,FERRITE,82UH,10+% TOL,10-% TOL,4132-CASE

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR,FERRITE,82UH,10+% TOL,10-% TOL,4132-CASE

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Frequency - Self Resonant	Mounting Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq	Tolerance	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Type	Shielding	Inductance	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR0804-471K	Nonstandard	4 MHz	Surface Mount	3.6 Ohm	160 mA	10.5 mm	8 mm	0.315 in	0.413 in	60 796 kHz	10 %	280 mA	125 °C	-40 °C	Ferrite	Drum Core Wirewound	Shielded
Bourns Inc. SRR0804-181K	Nonstandard	6 MHz	Surface Mount	1.45 Ohm	0.28 A	10.5 mm	8 mm	0.315 in	0.413 in	53 796 kHz	10 %	450 mA	125 °C	-40 °C	Ferrite	Drum Core Wirewound	Shielded	180 µH
Bourns Inc. SRR0804-120M	Nonstandard	28 MHz	Surface Mount	150 mOhm	1.1 A	10.5 mm	8 mm	0.315 in	0.413 in	2.52 MHz 38	20 %	1.9 A	125 °C	-40 °C	Ferrite	Drum Core Wirewound	Shielded	12 µH
Bourns Inc. SRR0804-820K	Nonstandard	10 MHz	Surface Mount	800 mOhm	400 mA	10.5 mm	8 mm	0.315 in	0.413 in	2.52 MHz 20	10 %	730 mA	125 °C	-40 °C	Ferrite	Drum Core Wirewound	Shielded	82 µH
Bourns Inc. SRR0804-121K	Nonstandard	8.5 MHz	Surface Mount	1 Ohm	350 mA	10.5 mm	8 mm	0.315 in	0.413 in		10 %	550 mA	125 °C	-40 °C	Ferrite	Drum Core Wirewound	Shielded		796 kHz	50
Bourns Inc. SRR0804-271K	Nonstandard	5.5 MHz	Surface Mount	2.1 Ohm	0.22 A	10.5 mm	8 mm	0.315 in	0.413 in		10 %	350 mA	125 °C	-40 °C	Ferrite	Drum Core Wirewound	Shielded	270 µH	796 kHz	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

82 µH Shielded Drum Core, Wirewound Inductor 400 mA 800mOhm Max Nonstandard
