QS18EN6DVQ8
ActiveBANNER ENGINEERING

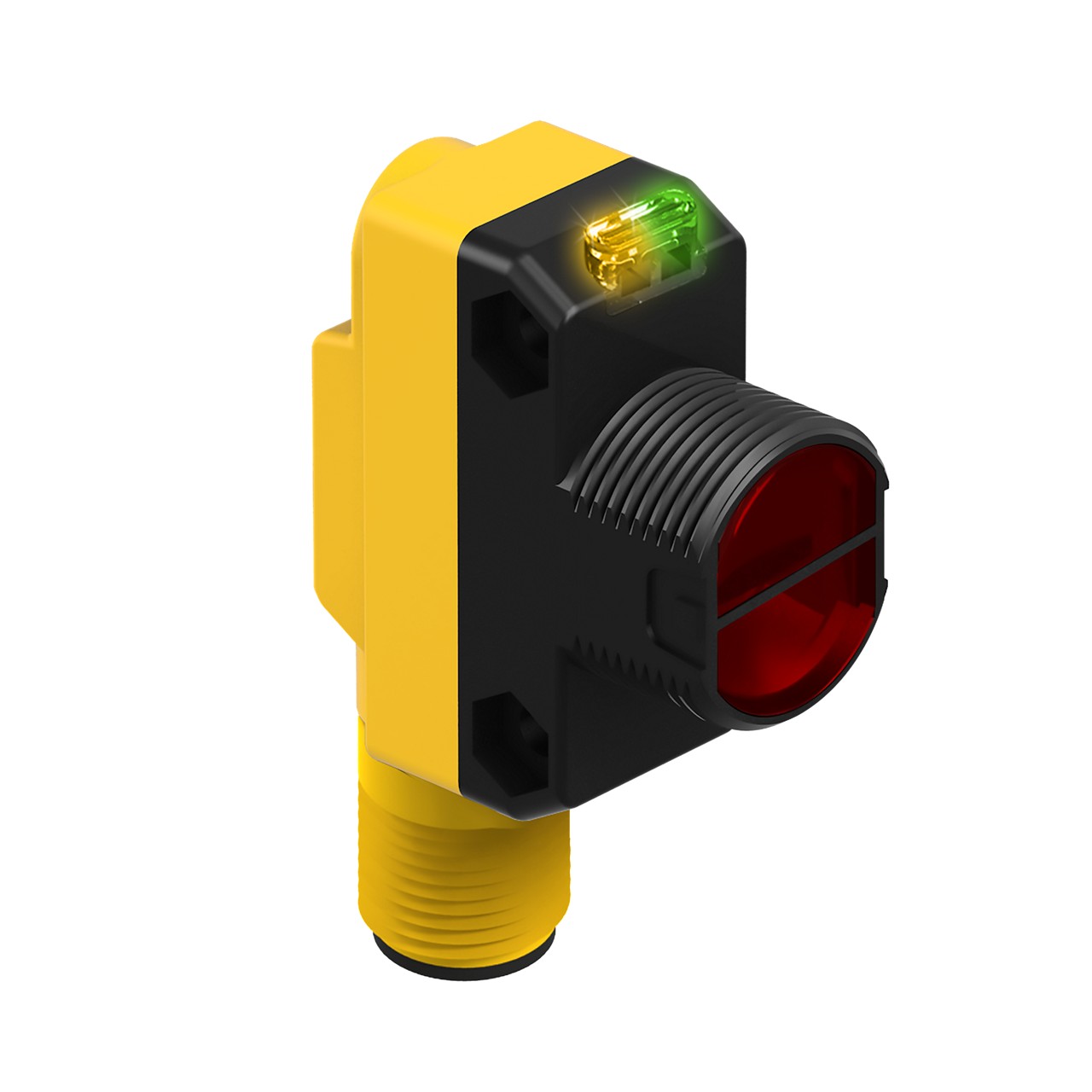

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18E SERIES, 600 MM, DIFFUSE, NPN, 10 V TO 30 V, QUICK DISCONNECT
Deep-Dive with AI
Search across all available documentation for this part.
QS18EN6DVQ8
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, WORLD BEAM, QS18E SERIES, 600 MM, DIFFUSE, NPN, 10 V TO 30 V, QUICK DISCONNECT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QS18EN6DVQ8 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IEC IP67 |
| Light Source | Red |
| Light Source | 630 nm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Response Time | 600 µs |
| Sensing Distance | 23.622 in |
| Sensing Distance | 60 cm |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
QS18EN6 Series
| Part | Light Source | Light Source | Response Time | Adjustment Type | Sensing Distance | Sensing Distance | Voltage - Supply [Max] | Voltage - Supply [Min] | Connection Method | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Method | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | Red | 630 nm | 600 µs | Adjustable | 23.622 in | 60 cm | 30 VDC | 10 VDC | Connector | NEMA 6P IEC IP67 | -20 C | 70 °C | Diffuse | ||
BANNER ENGINEERING | Red | 630 nm | 600 µs | Adjustable | 1.693 in | 43 mm | 30 VDC | 10 VDC | Cable | NEMA 6P IEC IP67 | -20 C | 70 °C | Convergent | 78.74 in | 2 m |
BANNER ENGINEERING | Red | 630 nm | 600 µs | Adjustable | 11.48 ft | 350 cm | 30 VDC | 10 VDC | Connector | NEMA 6P IEC IP67 | -20 C | 70 °C | Polarized Retroreflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QS18EN6 Series
Diffuse Optical Sensor 23.622" (600mm) NPN - Dark-ON/Light-ON - Selectable
