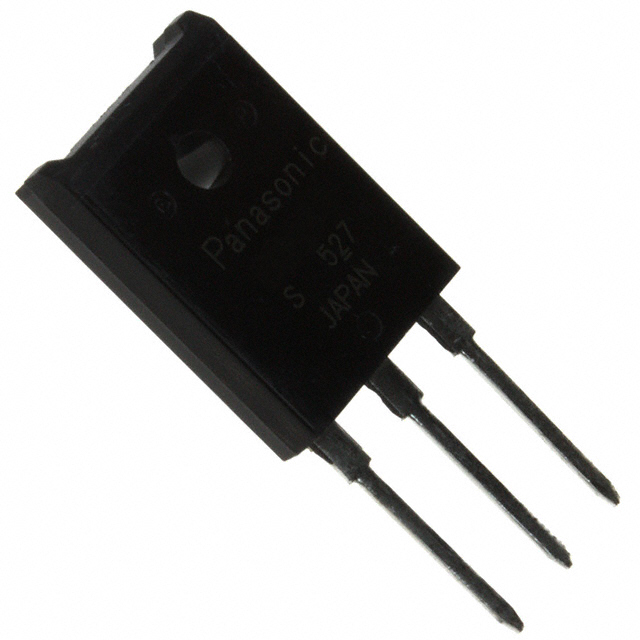

2SD20640S

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 120V 6A TOP-3F

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 120V 6A TOP-3F

Technical Specifications

Parameters and characteristics for this part

Specification	2SD20640S

Current - Collector Cutoff (Max) [Max]	50 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	80
Frequency - Transition	20 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TOP-3F
Power - Max [Max]	3 W
Supplier Device Package	TOP-3F-A1
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	120 V

Part	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Operating Temperature	Frequency - Transition	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Transistor Type	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce
Panasonic Industrial Automation Sales 2SD20640S	50 µA	2 V	3 W	150 °C	20 MHz	TOP-3F	120 V	Through Hole	NPN	TOP-3F-A1	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 120 V 6 A 20MHz 3 W Through Hole TOP-3F-A1
