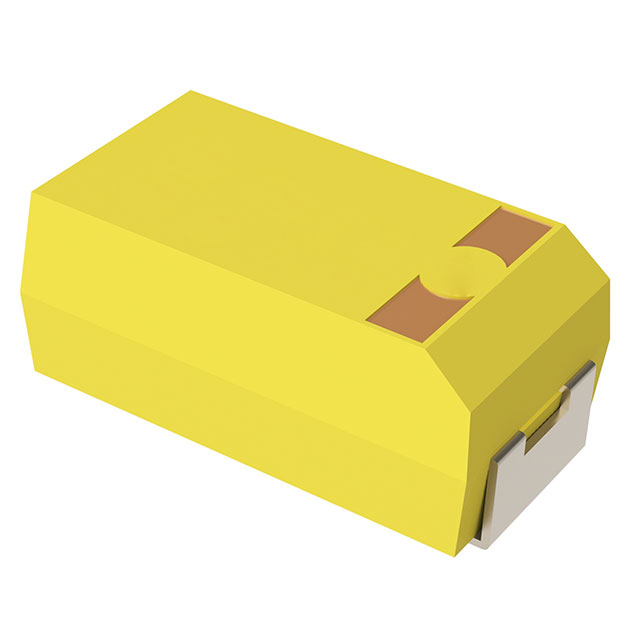

T541D157M010AH6510

Active

KEMET

CAP TANT POLY 150UF 10V 2917

Search across all available documentation for this part.

Active

KEMET

CAP TANT POLY 150UF 10V 2917

Technical Specifications

Parameters and characteristics for this part

Specification	T541D157M010AH6510

Capacitance	150 µF
ESR (Equivalent Series Resistance)	10 mOhm
Features	High Reliability
Height - Seated (Max) [Max] [z]	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Ratings	COTS
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Features	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Rated	Capacitance	Lifetime @ Temp.	Mounting Type	Ratings	ESR (Equivalent Series Resistance)	Package / Case	Package / Case	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
KEMET T541D157M010AH6510	High Reliability	20 %	-55 °C	125 °C	Molded	10 V	150 µF	2000 Hrs	Surface Mount	COTS	10 mOhm	7343 Metric	2917	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T541D227M010AH6620	High Reliability	20 %	-55 °C	125 °C	Molded	10 V	220 µF	2000 Hrs	Surface Mount	COTS	6 mOhm	7343 Metric	2917	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T541D157M010AH6720	High Reliability	20 %	-55 °C	125 °C	Molded	10 V	150 µF	2000 Hrs	Surface Mount	COTS	6 mOhm	7343 Metric	2917	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 10mOhm @ 100kHz
