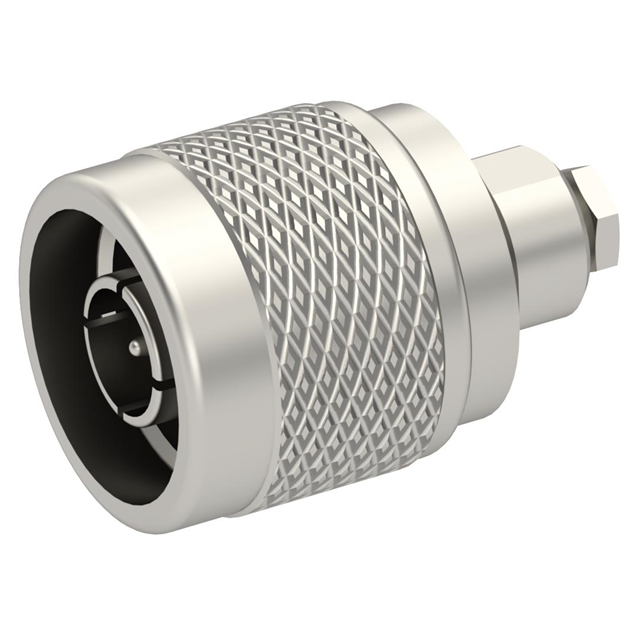

4000-7051-003

Active

Radiall USA, Inc.

N / STRAIGHT PLUG MALE CLAMP TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT PLUG MALE CLAMP TYP

Technical Specifications

Parameters and characteristics for this part

Specification	4000-7051-003

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp

Part	Number of Ports	Connector Style	Cable Group	Connector Type	Mounting Type	Shield Termination	Body Finish	Housing Color	Center Contact Plating	Center Contact Material	Body Material	Contact Termination	Dielectric Material
Radiall USA, Inc. 4000-7051-003	1	N Type	188 316 RG-174	Male Pin Plug	Free Hanging (In-Line)	Clamp	Nickel	Silver	Gold	Brass	Brass	Solder	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Plug, Male Pin Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
