DE11XRA150KN4AQ01F

Active

Murata Power Solutions Inc.

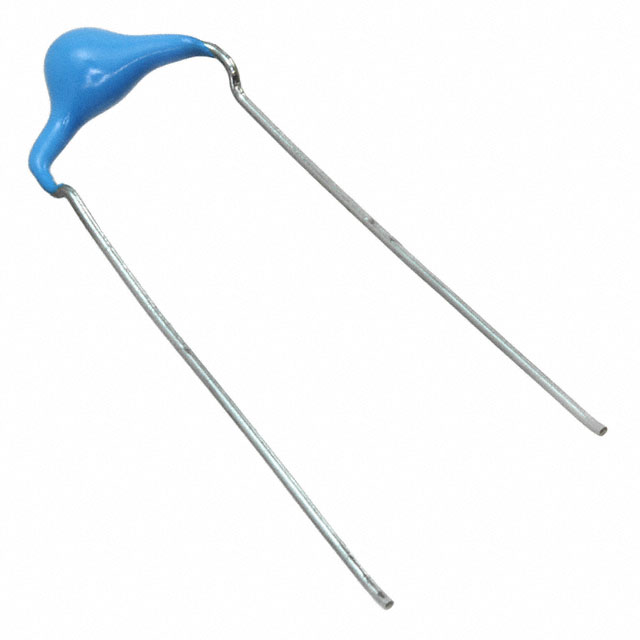

CAP CER 15PF 500V SL RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DE11XRA150KN4AQ01F

Active

Murata Power Solutions Inc.

CAP CER 15PF 500V SL RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE11XRA150KN4AQ01F

Applications	Safety
Capacitance	15 pF
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Temperature Coefficient	SL
Tolerance	10 %
Voltage - Rated	500 VAC

DE11XRA Series

Part	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Lead Spacing	Lead Spacing	Capacitance	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Applications	Lead Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DE11XRA680KJ4BP01F	10 %	Disc Radial	11 mm	0.433 in	125 °C	-40 °C	1.5 kV	1500 V	SL	0.394 in	10 mm	68 pF	X1 Y1	0.315 "	8 mm	Through Hole	Safety	Straight
Murata Power Solutions Inc. DE11XRA150KN4AQ01F	10 %	Disc Radial			125 °C	-40 °C		500 VAC	SL	0.394 in	10 mm	15 pF	X1 Y1	0.236 in	6 mm	Through Hole	Safety	Straight	0.354 in	9 mm
Murata Power Solutions Inc. DE11XRA100KA4BN01F
Murata Power Solutions Inc. DE11XRA470KA4BQ01F	10 %	Disc Radial	5 mm	0.197 in	125 °C	-40 °C		500 VAC	SL	0.394 in	10 mm	47 pF	X1 Y1	0.315 "	8 mm	Through Hole	Safety	Straight
Murata Power Solutions Inc. DE11XRA220KJ4BQ01F
Murata Power Solutions Inc. DE11XRA330KN4AP01F	10 %	Disc Radial			125 °C	-40 °C	1.5 kV	1500 V	SL	0.394 in	10 mm	33 pF	X1 Y1	0.276 in	7 mm	Through Hole	Safety	Straight	0.394 in	10 mm
Murata Power Solutions Inc. DE11XRA680KN4AQ01F	10 %	Disc Radial	12 mm	0.472 "	125 °C	-40 °C		500 VAC	SL	0.394 in	10 mm	68 pF	X1 Y1	0.354 in	9 mm	Through Hole	Safety	Straight
Murata Power Solutions Inc. DE11XRA100KJ4BQ01F
Murata Power Solutions Inc. DE11XRA330KN4AN01F	10 %	Disc Radial			125 °C	-40 °C		250 VAC	SL	0.394 in	10 mm	33 pF	X1 Y1	0.276 in	7 mm	Through Hole	Safety	Straight	0.394 in	10 mm
Murata Power Solutions Inc. DE11XRA220KA4BP01F	10 %	Disc Radial			125 °C	-40 °C	1.5 kV	1500 V	SL	0.394 in	10 mm	22 pF	X1 Y1	0.236 in	6 mm	Through Hole	Safety	Straight	0.354 in	9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
	Tape & Box (TB)	500	$ 0.21

Description

General part information

DE11XRA Series

15 pF ±10% 500VAC Ceramic Capacitor SL Radial, Disc
