AM2DS-0512SH30-NZ

Active

aimtec

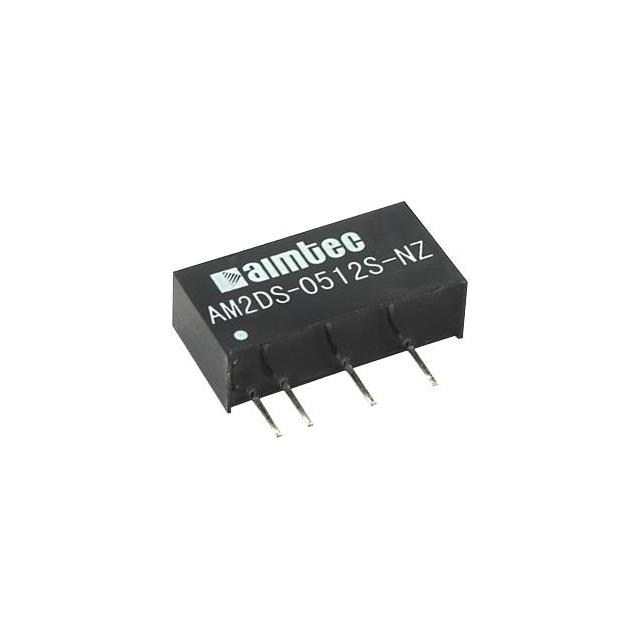

DC DC CONVERTER 12V 2W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 12V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Applications	Approval Agency	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Mounting Type	Power (Watts)	Package / Case	Supplier Device Package	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)
aimtec AM2DS-0512SH30-NZ	1	-40 °C	105 ░C	167 mA	3000 V	ITE (Commercial)	cULus cURus	Isolated Module	4.5 V	5.5 V	84 %	7 mm	0.39 in	10 mm	19.6 mm	0.27 in	0.77 in	12 V	Through Hole	2 W
aimtec AM2DS-051509DH52Z	2	-40 °C	95 °C		5.2 kV	ITE (Commercial)	CE	Isolated Module	4.5 V	5.5 V	83 %	7.2 mm	0.37 in	9.5 mm	19.5 mm	0.28 in	0.76 "	15 V	Through Hole	2 W	7-SIP Module 5 Leads	7-SIP	67 mA 111 mA	-9 V
aimtec AM2DS-2415DH52Z	2	-40 °C	95 °C		5.2 kV	ITE (Commercial)	CE	Isolated Module	21.6 V	26.4 V		7.2 mm	0.37 in	9.5 mm	19.5 mm	0.28 in	0.76 "	15 V	Through Hole	2 W	7-SIP Module 5 Leads	7-SIP	67 mA	-15 V	67 mA
aimtec AM2DS-1212DH30-NZ	2	-40 °C	105 ░C		3000 V	ITE (Commercial)	cULus cURus	Isolated Module	10.8 V	13.2 V	85 %	7 mm	0.41 "	10.5 mm	19.6 mm	0.28 in	0.77 in		Through Hole	2 W				-12 V	83 mA	12 V	-12 V	83 mA
aimtec AM2DS-0524S-NZ	1	-40 °C	105 ░C	83 mA	1.5 kV	ITE (Commercial)	cULus cURus	Isolated Module	4.5 V	5.5 V	84 %	7 mm	0.39 in	10 mm	19.6 mm	0.27 in	0.77 in	24 V	Through Hole	2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 167mA 4.5V - 5.5V Input
