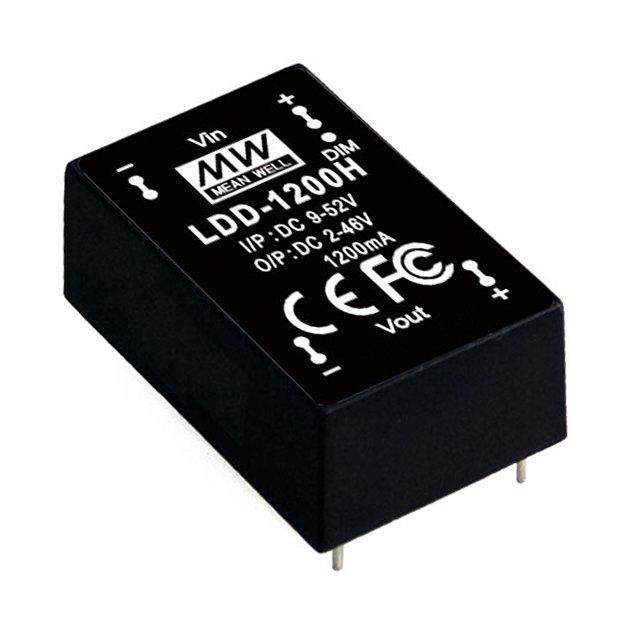

LDD-1200H

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-46V 1.2A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-46V 1.2A

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Package / Case	Dimming	Current - Output (Max) [Max]	Efficiency	Type	Mounting Type	Voltage - Input (Max) [Max]	Features	Termination Style	Ratings	Package / Case
MEAN WELL USA Inc. LDD-1200LS	-40 °C	71 °C	6 V	Buck	2 V	30 VDC	CE	0.8 in	1.25 "	0.45 "	11.4 mm	31.8 mm	20.3 mm	1	24-SMD Module 18 Leads	Analog PWM	1.2 A	95 %	Constant Current	Surface Mount	36 V	Remote On/Off SCP
MEAN WELL USA Inc. LDD-1200HW	-40 °C	85 °C	9 V	Buck	2 V	46 V	CE	0.8 in	1.25 "	0.48 in	12.2 mm	31.8 mm	20.3 mm	1		PWM	1.2 A	97 %	Constant Current	Chassis Mount	52 V	OTP Remote On/Off SCP	Wire Leads	IP67
MEAN WELL USA Inc. LDD-1200H	-40 °C	85 °C	9 V	Buck	2 V	46 V	CE	0.8 in	1.25 "	0.48 in	12.2 mm	31.8 mm	20.3 mm	1	24-DIP Module	PWM	1.2 A	97 %	Constant Current	Through Hole	52 V	OTP Remote On/Off SCP			9 PC Pad
MEAN WELL USA Inc. LDD-1200L	-40 °C	71 °C	6 V	Buck	2 V	30 VDC	CE	0.8 in	1.25 "	0.48 in	12.2 mm	31.8 mm	20.3 mm	1	24-DIP Module	Analog PWM	1.2 A	95 %	Constant Current	Through Hole	36 V	Remote On/Off SCP			9 PC Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.2A 2 ~ 46V Constant Current LED Driver Buck Topology 1 Output
