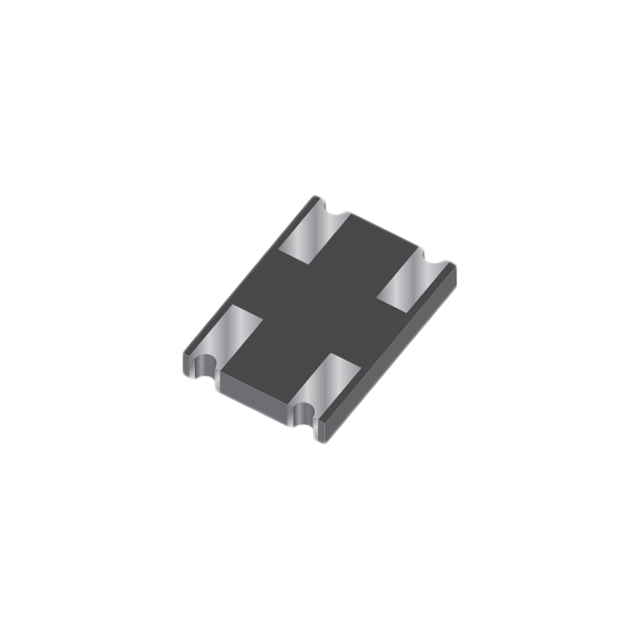

CBRDFA4-100 TR13 PBFREE

Active

Central Semiconductor Corp

E SURFACE MOUNT-RECTIFIER-B

Search across all available documentation for this part.

Active

Central Semiconductor Corp

E SURFACE MOUNT-RECTIFIER-B

Technical Specifications

Parameters and characteristics for this part

Specification	CBRDFA4-100 TR13 PBFREE

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	4-LDFN
Supplier Device Package	4-DFN-A
Supplier Device Package [x]	10.5
Supplier Device Package [y]	8.1
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Diode Type	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Technology
Central Semiconductor Corp CBRDFA4-100 TR13 PBFREE	4 A	-55 °C	175 ░C	4-LDFN	1000 V	5 µA	1 V	Single Phase	Surface Mount	8.1	4-DFN-A	10.5	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Surface Mount 4-DFN-A (10.5x8.1)
