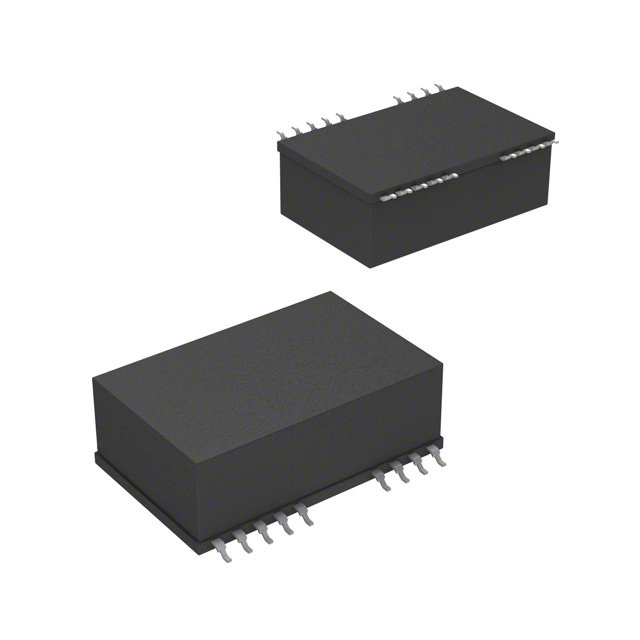

REC10-2405SRWZ/H2/A/M/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 10W DC/DC 2KV REG 4:1 9-36VIN 5VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC10-2405SRWZ/H2/A/M/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 10W DC/DC 2KV REG 4:1 9-36VIN 5VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC10-2405SRWZ/H2/A/M/SMD

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Efficiency	86 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 18 Leads
Power (Watts)	10 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	19.9 mm
Size / Dimension [y]	0.78 in
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

REC10-SRWZ_DRWZ Series

Isolated DC/DC Converters - SMD 10W DC/DC 2kV REG 4:1 9-36Vin +/-15out

Part	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Control Features	Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Package / Case	Type	Mounting Type	Applications	Features	Voltage - Output 2	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Package / Case
RECOM Power REC10-2415DZ/H2/M	2	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	71 °C	333 mA	333 mA	Active High Enable	9 V	10 W	86 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial)	OCP Remote On/Off SCP UVLO	-15 V	15 V	2000 V	36 V
RECOM Power REC10-4805DRWZ/H2/A/M/SMD-R	2	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	-40 °C	65 °C	1 A	1 A	Active High Enable	18 V	10 W	83 %	24-SMD Module 18 Leads	Isolated Module	Surface Mount	ITE (Commercial)	OCP Remote On/Off SCP	-5 V	5 V	2000 V	75 V
RECOM Power REC10-243.3SRW/H2/A/M	1	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	75 ░C			Active High Enable	18 V	10 W	85 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial)	OCP Remote On/Off SCP		3.3 V	2000 V	36 V	2 A	9 PC Pad
RECOM Power REC10-243.3SRW/H3/A/M	1	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	75 ░C			Active High Enable	18 V	10 W	85 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial)	OCP Remote On/Off SCP		3.3 V	3000 V	36 V	2 A	9 PC Pad
RECOM Power REC10-483.3SRWZ/H2/A/M	1	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	65 °C			Active High Enable	18 V	10 W	84 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial)	OCP Remote On/Off SCP		3.3 V	2000 V	75 V	2 A	9 PC Pad
RECOM Power REC10-483.3SRW/H3/A/M/X2	1	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	75 ░C			Active High Enable	36 V	10 W	85 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial) Medical	OCP Remote On/Off SCP		3.3 V	3000 V	75 V	2 A	9 PC Pad
RECOM Power REC10-2405SRWZ/H2/A/M/SMD	1	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	-40 °C	65 °C			Active High Enable	9 V	10 W	86 %	24-SMD Module 18 Leads	Isolated Module	Surface Mount	ITE (Commercial)	OCP Remote On/Off SCP		5 V	2000 V	36 V	2 A
RECOM Power REC10-2415DRWZ/H2/A/M	2	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	65 °C	333 mA	333 mA	Active High Enable	9 V	10 W	85 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial)	OCP Remote On/Off SCP	-15 V	15 V	2000 V	36 V		9 PC Pad
RECOM Power REC10-4805SRWZ/H2/A/M	1	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	-40 °C	65 °C			Active High Enable	18 V	10 W	86 %	24-DIP Module	Isolated Module	Through Hole	ITE (Commercial)	OCP Remote On/Off SCP		5 V	2000 V	75 V	2 A	9 PC Pad
RECOM Power REC10-4815DRWZ/H2/A/M/SMD-R	2	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	-40 °C	65 °C	333 mA	333 mA	Active High Enable	18 V	10 W	85 %	24-SMD Module 18 Leads	Isolated Module	Surface Mount	ITE (Commercial)	OCP Remote On/Off SCP	-15 V	15 V	2000 V	75 V
