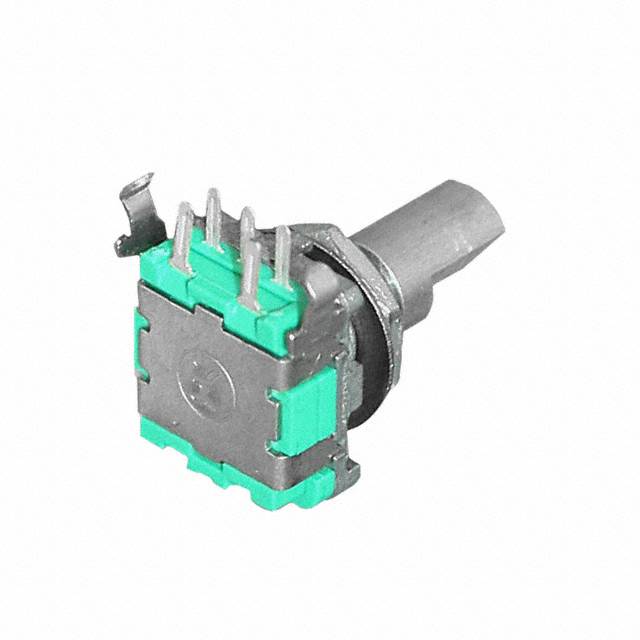

EN11-VSM0AF20
ActiveTT Electronics/BI
ROTARY ENCODER MECHANICAL 20PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN11-VSM0AF20
ActiveTT Electronics/BI
ROTARY ENCODER MECHANICAL 20PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EN11-VSM0AF20 |
|---|---|
| Actuator Type | Flatted End |
| Actuator Type [diameter] | 6 mm |
| Built in Switch | True |
| Detent | False |
| Encoder Type | Mechanical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Right Angle |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 20 |
| Rotational Life (Cycles Min) [Min] | 30K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.95 | |
| 5 | $ 2.66 | |||
| 10 | $ 2.49 | |||
| 25 | $ 2.28 | |||
| 40 | $ 2.13 | |||
| 80 | $ 2.00 | |||
| 230 | $ 1.83 | |||
| 900 | $ 1.72 | |||
| 1800 | $ 1.61 | |||
Description
General part information
EN11 Series
Rotary Encoder Mechanical 20 Quadrature (Incremental) Right Angle
