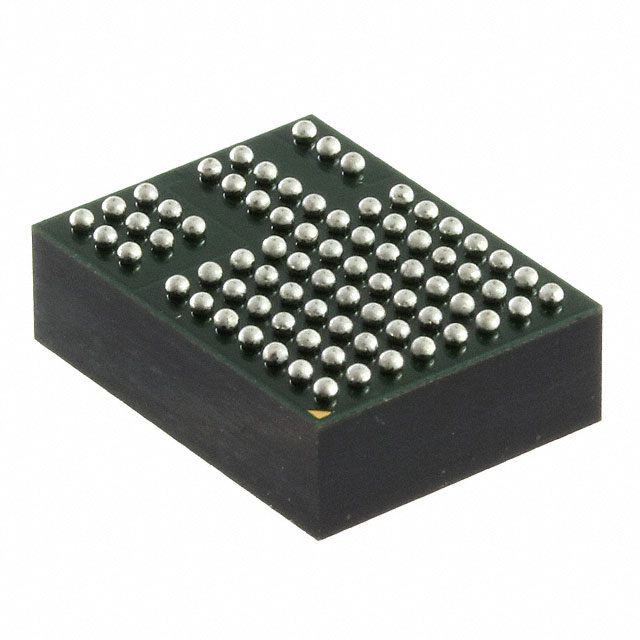

LTM8033MPY
ActiveULTRALOW NOISE EMC 36VIN, 3A DC/DC ΜMODULE REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
LTM8033MPY
ActiveULTRALOW NOISE EMC 36VIN, 3A DC/DC ΜMODULE REGULATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8033MPY |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 76-BBGA Module |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.59 in |
| Size / Dimension [y] | 11.3 mm |
| Size / Dimension [y] | 0.44 in |
| Size / Dimension [z] | 0.19 in |
| Size / Dimension [z] | 4.9 mm |
| Supplier Device Package | 76-BGA (15x11.25) |
| Supplier Device Package [x] | 15 |
| Supplier Device Package [y] | 11.25 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 3.6 V |
| Voltage - Output 1 [Max] | 24 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 62.48 | |
| 5 | $ 60.15 | |||
| 10 | $ 59.18 | |||
| 25 | $ 57.91 | |||
| 50 | $ 56.97 | |||
| 119 | $ 55.81 | |||
Description
General part information
LTM8033 Series
The LTM8033 is an electromagnetic compatible (EMC) 36V, 3A DC/DC μModule®(power module) buck converter designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components. Included in the package are the switching controller, power switches, inductor, filters and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8033 supports an output voltage range of 0.8V to 24V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.The LTM8033 is packaged in a compact (11.25mm × 15mm × 4.32mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8033 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation
