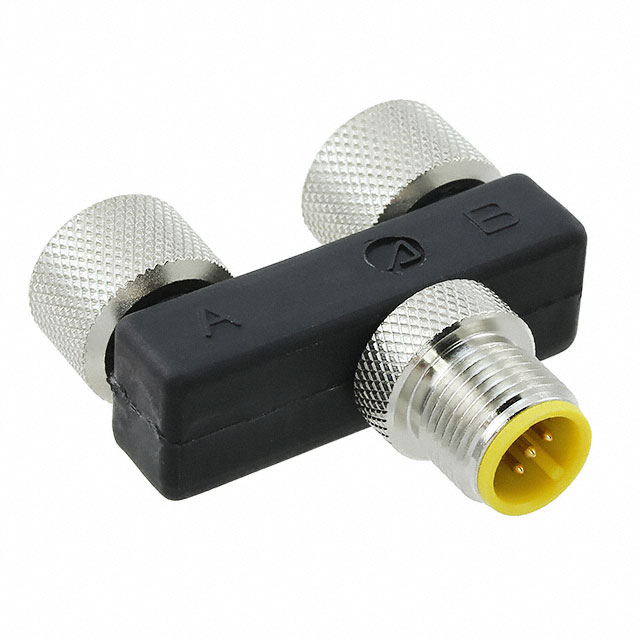

SPL001W BK032

Obsolete

ALPHA WIRE

CONN Y-ADPT 5P-5/5P M-F/F INLINE

Search across all available documentation for this part.

Obsolete

ALPHA WIRE

CONN Y-ADPT 5P-5/5P M-F/F INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SPL001W BK032

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets (2)
Features	Coupling Nut
Housing Color	Black
Housing Material	Polyurethane
Housing Material	PUR
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	63 V

Part	Convert To (Adapter End)	Orientation (Convert From)	Housing Color	Housing Material	Housing Material	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Shielding	Orientation (Convert To)	Connector Style	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions (Convert To)	Number of Positions (Convert To)	Shell Size - Insert (Convert To) [custom]	Features	Voltage Rating	Convert From (Adapter End)
ALPHA WIRE SPL001W BK032	Female Sockets (2)	Keyed	Black	Polyurethane	PUR	M12	5	Unshielded	Keyed	Distributor Y-Shaped	IP67 - Dust Tight Waterproof	90 °C	-25 °C	Free Hanging (In-Line)	5	2	M12	Coupling Nut	63 V	Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor Y-Shaped 5/5 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
