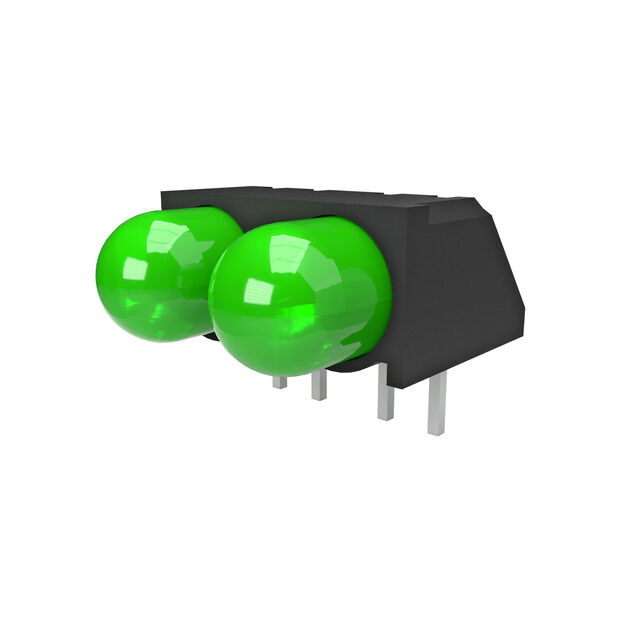

5502207002F

Active

DIALIGHT

LED CBI 5MM 2-SEG GRN RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5502207002F

Active

DIALIGHT

LED CBI 5MM 2-SEG GRN RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5502207002F

Color	Green (x 2)
Configuration	2 Wide
Current	10 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	65 °
Voltage Rating	2.1 V
Wavelength - Peak	563 nm

5502207 Series

Part	Mounting Type	Lens Style	Lens Size	Lens Size	Voltage Rating	Lens Type	Viewing Angle	Color	Configuration	Current	Millicandela Rating	Wavelength - Peak
DIALIGHT 5502207807F	Through Hole Right Angle	Round with Domed Top	T-1 3/4	5 mm
DIALIGHT 5502207002F	Through Hole Right Angle	Round with Domed Top	T-1 3/4	5 mm	2.1 V	Diffused	65 °	Green (x 2)	2 Wide	10 mA	10 mcd	563 nm
DIALIGHT 5502207814F	Through Hole Right Angle	Round with Domed Top	T-1 3/4	5 mm
DIALIGHT 5502207802F	Through Hole Right Angle	Round with Domed Top	T-1 3/4	5 mm
DIALIGHT 5502207004F	Through Hole Right Angle				2.1 V	Diffused	65 °	Green (x 4)	4 Wide	10 mA	10 mcd	563 nm
DIALIGHT 5502207100F	Through Hole Right Angle	Round with Domed Top	T-1 3/4	5 mm	2.1 V	Diffused	50 °	Green	Single	25 mA	6.3 mcd	585 nm
DIALIGHT 5502207F	Through Hole Right Angle				2.1 V	Diffused	65 °	Green	Single	10 mA	10 mcd	563 nm
DIALIGHT 5502207810F	Through Hole Right Angle	Round with Domed Top	T-1 3/4	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1075	$ 0.69

Description

General part information

5502207 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 Wide Green (x 2) Diffused 2.1V 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
